本篇文章主要介绍了Spring Boot实战之netty-socketio实现简单聊天室(给指定用户推送消息),具有一定的参考价值,有兴趣的可以了解一下。

网上好多例子都是群发的,本文实现一对一的发送,给指定客户端进行消息推送

1、本文使用到netty-socketio开源库,以及MySQL,所以首先在pom.xml中添加相应的依赖库


<dependency>
    <groupId>com.corundumstudio.socketio</groupId>
    <artifactId>netty-socketio</artifactId>
    <version>1.7.11</version>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<dependency>
  <groupId>mysql</groupId>
  <artifactId>mysql-connector-java</artifactId>
</dependency>

2、修改application.properties, 添加端口及主机数据库连接等相关配置,


wss.server.port=8081
wss.server.host=localhost

spring.datasource.url = jdbc:mysql://127.0.0.1:3306/springlearn
spring.datasource.username = root
spring.datasource.password = root
spring.datasource.driverClassName = com.mysql.jdbc.Driver

# Specify the DBMS
spring.jpa.database = MYSQL
# Show or not log for each sql query
spring.jpa.show-sql = true
# Hibernate ddl auto (create, create-drop, update)
spring.jpa.hibernate.ddl-auto = update
# Naming strategy
spring.jpa.hibernate.naming-strategy = org.hibernate.cfg.ImprovedNamingStrategy
# stripped before adding them to the entity manager)
spring.jpa.properties.hibernate.dialect = org.hibernate.dialect.MySQL5Dialect

3、修改Application文件,添加nettysocket的相关配置信息


package com.xiaofangtech.sunt;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;

import com.corundumstudio.socketio.AuthorizationListener;
import com.corundumstudio.socketio.Configuration;
import com.corundumstudio.socketio.HandshakeData;
import com.corundumstudio.socketio.SocketIOServer;
import com.corundumstudio.socketio.annotation.SpringAnnotationScanner;

@SpringBootApplication
public class NettySocketSpringApplication {

  @Value("${wss.server.host}")
  private String host;

  @Value("${wss.server.port}")
  private Integer port;

  @Bean
  public SocketIOServer socketIOServer()
  {
    Configuration config = new Configuration();
    config.setHostname(host);
    config.setPort(port);

    //该处可以用来进行身份验证
    config.setAuthorizationListener(new AuthorizationListener() {
      @Override
      public boolean isAuthorized(HandshakeData data) {
        //http://localhost:8081?username=test&password=test
        //例如果使用上面的链接进行connect,可以使用如下代码获取用户密码信息,本文不做身份验证
//       String username = data.getSingleUrlParam("username");
//       String password = data.getSingleUrlParam("password");
        return true;
      }
    });

    final SocketIOServer server = new SocketIOServer(config);
    return server;
  }

  @Bean
  public SpringAnnotationScanner springAnnotationScanner(SocketIOServer socketServer) {
    return new SpringAnnotationScanner(socketServer);
  }

  public static void main(String[] args) {
    SpringApplication.run(NettySocketSpringApplication.class, args);
  }
}

4、添加消息结构类MessageInfo.java


package com.xiaofangtech.sunt.message;

public class MessageInfo {
  //源客户端id
  private String sourceClientId;
  //目标客户端id
  private String targetClientId;
  //消息类型
  private String msgType;
  //消息内容
  private String msgContent;

  public String getSourceClientId() {
    return sourceClientId;
  }
  public void setSourceClientId(String sourceClientId) {
    this.sourceClientId = sourceClientId;
  }
  public String getTargetClientId() {
    return targetClientId;
  }
  public void setTargetClientId(String targetClientId) {
    this.targetClientId = targetClientId;
  }
  public String getMsgType() {
    return msgType;
  }
  public void setMsgType(String msgType) {
    this.msgType = msgType;
  }
  public String getMsgContent() {
    return msgContent;
  }
  public void setMsgContent(String msgContent) {
    this.msgContent = msgContent;
  }
}

5、添加客户端信息,用来存放客户端的sessionid


package com.xiaofangtech.sunt.bean;

import java.util.Date;

import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Table;
import javax.validation.constraints.NotNull;

@Entity
@Table(name="t_clientinfo")
public class ClientInfo {
  @Id
  @NotNull
  private String clientid;
  private Short connected;
  private Long mostsignbits;
  private Long leastsignbits;
  private Date lastconnecteddate;
  public String getClientid() {
    return clientid;
  }
  public void setClientid(String clientid) {
    this.clientid = clientid;
  }
  public Short getConnected() {
    return connected;
  }
  public void setConnected(Short connected) {
    this.connected = connected;
  }
  public Long getMostsignbits() {
    return mostsignbits;
  }
  public void setMostsignbits(Long mostsignbits) {
    this.mostsignbits = mostsignbits;
  }
  public Long getLeastsignbits() {
    return leastsignbits;
  }
  public void setLeastsignbits(Long leastsignbits) {
    this.leastsignbits = leastsignbits;
  }
  public Date getLastconnecteddate() {
    return lastconnecteddate;
  }
  public void setLastconnecteddate(Date lastconnecteddate) {
    this.lastconnecteddate = lastconnecteddate;
  }

}

6、添加查询数据库接口ClientInfoRepository.java


package com.xiaofangtech.sunt.repository;

import org.springframework.data.repository.CrudRepository;

import com.xiaofangtech.sunt.bean.ClientInfo;

public interface ClientInfoRepository extends CrudRepository<ClientInfo, String>{
  ClientInfo findClientByclientid(String clientId);
}

7、添加消息处理类MessageEventHandler.Java


package com.xiaofangtech.sunt.message;

import java.util.Date;
import java.util.UUID;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import com.corundumstudio.socketio.AckRequest;
import com.corundumstudio.socketio.SocketIOClient;
import com.corundumstudio.socketio.SocketIOServer;
import com.corundumstudio.socketio.annotation.OnConnect;
import com.corundumstudio.socketio.annotation.OnDisconnect;
import com.corundumstudio.socketio.annotation.OnEvent;
import com.xiaofangtech.sunt.bean.ClientInfo;
import com.xiaofangtech.sunt.repository.ClientInfoRepository;

@Component
public class MessageEventHandler
{
  private final SocketIOServer server;

  @Autowired
  private ClientInfoRepository clientInfoRepository;

  @Autowired
  public MessageEventHandler(SocketIOServer server)
  {
    this.server = server;
  }
  //添加connect事件,当客户端发起连接时调用,本文中将clientid与sessionid存入数据库
  //方便后面发送消息时查找到对应的目标client,
  @OnConnect
  public void onConnect(SocketIOClient client)
  {
    String clientId = client.getHandshakeData().getSingleUrlParam("clientid");
    ClientInfo clientInfo = clientInfoRepository.findClientByclientid(clientId);
    if (clientInfo != null)
    {
      Date nowTime = new Date(System.currentTimeMillis());
      clientInfo.setConnected((short)1);
      clientInfo.setMostsignbits(client.getSessionId().getMostSignificantBits());
      clientInfo.setLeastsignbits(client.getSessionId().getLeastSignificantBits());
      clientInfo.setLastconnecteddate(nowTime);
      clientInfoRepository.save(clientInfo);
    }
  }

  //添加@OnDisconnect事件,客户端断开连接时调用,刷新客户端信息
  @OnDisconnect
  public void onDisconnect(SocketIOClient client)
  {
    String clientId = client.getHandshakeData().getSingleUrlParam("clientid");
    ClientInfo clientInfo = clientInfoRepository.findClientByclientid(clientId);
    if (clientInfo != null)
    {
      clientInfo.setConnected((short)0);
      clientInfo.setMostsignbits(null);
      clientInfo.setLeastsignbits(null);
      clientInfoRepository.save(clientInfo);
    }
  }

  //消息接收入口,当接收到消息后,查找发送目标客户端,并且向该客户端发送消息,且给自己发送消息
  @OnEvent(value = "messageevent")
  public void onEvent(SocketIOClient client, AckRequest request, MessageInfo data)
  {
    String targetClientId = data.getTargetClientId();
    ClientInfo clientInfo = clientInfoRepository.findClientByclientid(targetClientId);
    if (clientInfo != null && clientInfo.getConnected() != 0)
    {
      UUID uuid = new UUID(clientInfo.getMostsignbits(), clientInfo.getLeastsignbits());
      System.out.println(uuid.toString());
      MessageInfo sendData = new MessageInfo();
      sendData.setSourceClientId(data.getSourceClientId());
      sendData.setTargetClientId(data.getTargetClientId());
      sendData.setMsgType("chat");
      sendData.setMsgContent(data.getMsgContent());
      client.sendEvent("messageevent", sendData);
      server.getClient(uuid).sendEvent("messageevent", sendData);
    }

  }
}

8、添加ServerRunner.java


package com.xiaofangtech.sunt.message;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.stereotype.Component;

import com.corundumstudio.socketio.SocketIOServer;

@Component
public class ServerRunner implements CommandLineRunner {
  private final SocketIOServer server;

  @Autowired
  public ServerRunner(SocketIOServer server) {
    this.server = server;
  }

  @Override
  public void run(String... args) throws Exception {
    server.start();
  }
}

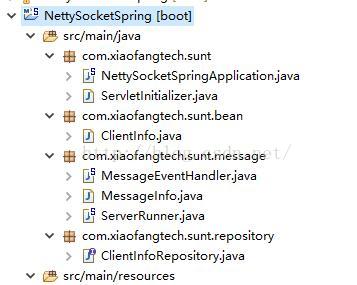

9、工程结构

10、运行测试

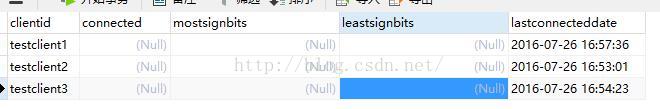

1) 添加基础数据,数据库中预置3个客户端testclient1,testclient2,testclient3

2) 创建客户端文件index.html,index2.html,index3.html分别代表testclient1 testclient2 testclient3三个用户

本文直接修改的https://github.com/mrniko/netty-socketio-demo/tree/master/client 中的index.html文件

其中clientid为发送者id, targetclientid为目标方id,本文简单的将发送方和接收方写死在html文件中

使用 以下代码进行连接


io.connect('http://localhost:8081?clientid='+clientid);

index.html 文件内容如下


<!DOCTYPE html>
<html>
<head>

    <meta charset="utf-8" />

    <title>Demo Chat</title>

    <link href="bootstrap.css" rel="external nofollow" rel="stylesheet">

  <style>
    body {
      padding:20px;
    }
    #console {
      height: 400px;
      overflow: auto;
    }
    .username-msg {color:orange;}
    .connect-msg {color:green;}
    .disconnect-msg {color:red;}
    .send-msg {color:#888}
  </style>


  <script src="js/socket.io/socket.io.js"></script>
    <script src="js/moment.min.js"></script>
    <script src="http://code.jquery.com/jquery-1.10.1.min.js"></script>

  <script>

    var clientid = 'testclient1';
    var targetClientId= 'testclient2';

    var socket = io.connect('http://localhost:8081?clientid='+clientid);

    socket.on('connect', function() {
      output('<span class="connect-msg">Client has connected to the server!</span>');
    });

    socket.on('messageevent', function(data) {
      output('<span class="username-msg">' + data.sourceClientId + ':</span> ' + data.msgContent);
    });

    socket.on('disconnect', function() {
      output('<span class="disconnect-msg">The client has disconnected!</span>');
    });

        function sendDisconnect() {
            socket.disconnect();
        }

    function sendMessage() {
            var message = $('#msg').val();
            $('#msg').val('');

            var jsonObject = {sourceClientId: clientid,
                     targetClientId: targetClientId,
                     msgType: 'chat',
                     msgContent: message};
            socket.emit('messageevent', jsonObject);
    }

    function output(message) {
            var currentTime = "<span class='time'>" + moment().format('HH:mm:ss.SSS') + "</span>";
            var element = $("<div>" + currentTime + " " + message + "</div>");
      $('#console').prepend(element);
    }

    $(document).keydown(function(e){
      if(e.keyCode == 13) {
        $('#send').click();
      }
    });
  </script>
</head>

<body>

  <h1>Netty-socketio Demo Chat</h1>

  <br/>

  <div id="console" class="well">
  </div>

    <form class="well form-inline" onsubmit="return false;">
      <input id="msg" class="input-xlarge" type="text" placeholder="Type something..."/>
      <button type="button" onClick="sendMessage()" class="btn" id="send">Send</button>
      <button type="button" onClick="sendDisconnect()" class="btn">Disconnect</button>
    </form>
</body>
</html>

3、本例测试时

testclient1 发送消息给 testclient2

testclient2 发送消息给 testclient1

testclient3发送消息给testclient1

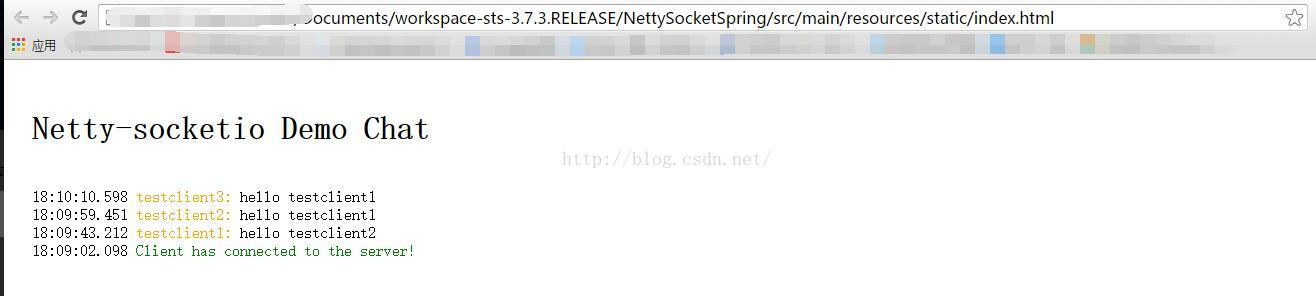

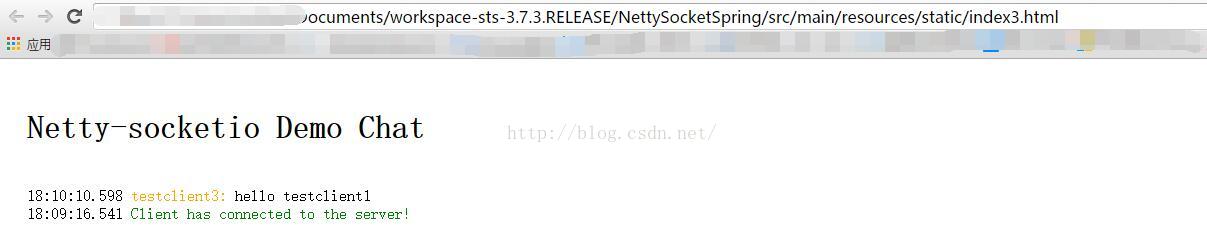

运行结果如下


以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持PHPERZ。



相关阅读 :
Spring Boot实战之netty-socketio实现简单聊天室(给指定用户推送消息)
Spring Boot实战之发送邮件示例代码
Spring入门实战之Profile详解
Spring Cloud实战技巧之使用随机端口
详解Spring Boot Web项目之参数绑定
Spring和Websocket相结合实现消息的推送
详解Spring Aop实例之AspectJ注解配置
详解Spring Aop实例之xml配置
spring boot 日志配置详解
详解Spring Boot 部署与服务配置
Spring Boot如何解决Mysql断连问题
Spring Boot JPA访问Mysql示例
最新网友评论  共有(0)条评论 发布评论 返回顶部

Copyright © 2007-2017 PHPERZ.COM All Rights Reserved   冀ICP备14009818号  版权声明  广告服务
