Android仿微信清理内存图表动画（解决surfaceView屏幕闪烁问题）demo实例详解

发布于 2017-10-01 03:05:20 | 145 次阅读 | 评论: 0 | 来源: 网友投递

这里有新鲜出炉的精品教程，程序狗速度看过来！

Android移动端操作系统

Android是一种基于Linux的自由及开放源代码的操作系统，主要使用于移动设备，如智能手机和平板电脑，由Google公司和开放手机联盟领导及开发。尚未有统一中文名称，中国大陆地区较多人使用“安卓”或“安致”。

本文通过实例代码给大家讲解android仿微信清理内存图表动画（解决surfaceView屏幕闪烁问题）的相关资料,本文介绍的非常详细，具有参考借鉴价值，需要的朋友可以参考下

最近接了一个项目其中有功能要实现一个清理内存，要求和微信的效果一样。于是想到用surfaceView而不是继承view。下面小编给大家解析下实现思路。

surfaceView是为了解决频繁绘制动画产生了闪烁，而采用了双缓冲机制，即A、B两个缓冲轮流显示在画布上，同时，使用不当，同样容易产生闪烁，这是由于A、B中有一个缓冲没有改变。

在我写这个view的时候就遇到了这个问题，研究了好久终于解决。

首先说一下思路：

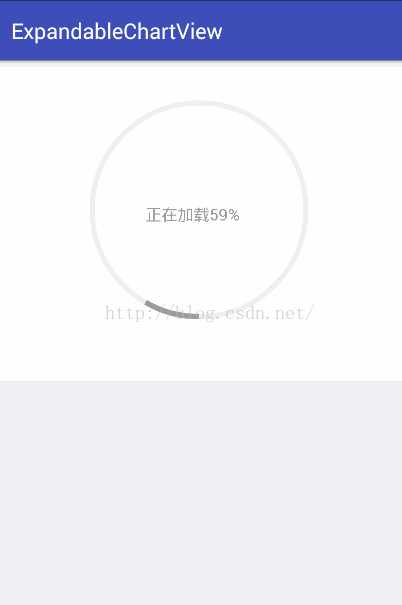

微信清理缓存的动画是：

一个圆环不停的转动，同时中间有文字显示-->加载完成后，出现一个慢慢展开的图标，同时第一块区域要突出一点。

这就是微信的动画效果。但是具体实现是怎么样的呢？

下面说一下我实现的方法：

1、旋转圆环：

这个圆环由两部分组成，一个圆和一个深灰的弧线，而弧线一直在转动，产生了圆环在旋转的效果。

因此，这个就很好解决了。我们画两个图形，一个圆形，一个弧线，而弧线的角度不停的变化就产了旋转的效果。为了让它不断变化，就要用到一个动画类ValueAnimator,通过这个类不停的给出一个角度，然后我们不停的绘制，就可以完成这个效果。

2、文字：

文字是和圆环是一部分的，当然他们其实应该同时绘制。但是每次绘制，为了避免文字的重叠，我们需要将canvas清除。

我们通过计算出总的旋转动画时间和一个由绘制动画开始，到具体当前绘制时的时间差来模拟出百分比。

3、会展开的图表：

这个是这个效果的难点部分，这里遇到的问题也比较多。

这是一个慢慢展开的动画，看似是一个圆在慢慢显现，其实不是。只不过是一个扇形再不停的旋转，但是没有清除之前的画布，这样产生了平铺效果。而第一块区域的扇形较大只不过是半径大一点而已。因此这部分我们同样利用ValueAnimator，也可以画出。

通过对第一个旋转动画进行监听，当第一个效果结束的时候，第二个图表的动画开始进行。

4、具体的内存大小信息：

这个比较简单，只需要确定坐标即可，但是在写的时候也遇到了闪烁情况。

下面是具体实现

最初版本：


package xiaoqi.expandablechartview;
import android.animation.Animator;
import android.animation.PropertyValuesHolder;
import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.PixelFormat;
import android.graphics.PorterDuff;
import android.graphics.RectF;
import android.util.AttributeSet;
import android.view.SurfaceHolder;
import android.view.SurfaceView;
import android.view.animation.LinearInterpolator;
public class ChartView extends SurfaceView implements SurfaceHolder.Callback {
private Context context;
private SurfaceHolder holder;
private ValueAnimator chartAnimator;
private ValueAnimator circleAnimator;
//中间内存信息方块的坐标
private float centerDetailLeft;
private float centerDetailTop;
private float centerDetailRight;
private float centerDetailBottom;
//chart外接正方形坐标
private float chartLeft;
private float chartTop;
private float chartRight;
private float chartBottom;
//起始角度
private float startAngle = 270;
//半径
private float radius;
//各区域角度
private float area1Angle;
private float area2Angle;
//区域的量
private float total;
private float area1;
private float area2;
private long time;
private int repeatCount = 2;
//是否为第一次显示，用于防止surface闪烁
private boolean area1IsFirstShow = true;
private boolean area2IsFirstShow = true;
//大扇形外接正方形
private RectF rectF;
//小扇形外接正方形
private RectF rectF2;
private Paint area1Paint;
private Paint area2Paint;
private Paint area3Paint;
private Paint circlePaint;
private Paint arcPaint;
private Paint loadingPaint;
private Paint textPaint;
private static final int CIRCLE_DURATION = 1000;
public ChartView(Context context) {
super(context);
this.context = context;
init();
}
public ChartView(Context context, AttributeSet attrs) {
super(context, attrs);
this.context = context;
init();
}
public ChartView(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
this.context = context;
init();
}
private void init() {
radius = Utility.dip2px(context, 100);
holder = getHolder();
holder.addCallback(this);
setZOrderOnTop(true);
holder.setFormat(PixelFormat.TRANSLUCENT);
initPaint();
initAnimator();
}
private void initAnimator() {
PropertyValuesHolder angleValues = PropertyValuesHolder.ofFloat("angle", 0f, 360f);
chartAnimator = ValueAnimator.ofPropertyValuesHolder(angleValues);
chartAnimator.setDuration(2000);
chartAnimator.setInterpolator(new LinearInterpolator());
chartAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
float angle = obj2Float(animation.getAnimatedValue("angle"));
Canvas canvas = holder.lockCanvas(null);
if(canvas != null){
// canvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR);
drawDetail(canvas);
// canvas.setDrawFilter(new PaintFlagsDrawFilter(0, Paint.ANTI_ALIAS_FLAG | Paint.FILTER_BITMAP_FLAG));
// if (!area1IsFirstShow) {
// canvas.drawArc(rectF, startAngle, area1Angle, true, area1Paint);
// }
// if (!area2IsFirstShow) {
// canvas.drawArc(rectF2, area1Angle + startAngle, area2Angle, true, area2Paint);
// }
if (angle < area1Angle) {
canvas.drawArc(rectF, startAngle, angle, true, area1Paint);
} else if (angle <= area2Angle + area1Angle) {
// if (area1IsFirstShow) {
// area1IsFirstShow = false;
// canvas.drawArc(rectF, startAngle, area1Angle, true, area1Paint);
// } else {
canvas.drawArc(rectF2, startAngle+area1Angle, angle - area1Angle, true, area2Paint);
// }
} else {
// if (area2IsFirstShow) {
// area2IsFirstShow = false;
// canvas.drawArc(rectF2, area1Angle + startAngle, area2Angle, true, area2Paint);
// } else {
canvas.drawArc(rectF2, startAngle + area1Angle + area2Angle, angle - area2Angle - area1Angle,
true, area3Paint);
// }
}
holder.unlockCanvasAndPost(canvas);
}
}
});
circleAnimator = ValueAnimator.ofPropertyValuesHolder(angleValues);
circleAnimator.setInterpolator(new LinearInterpolator());
circleAnimator.setDuration(CIRCLE_DURATION);
circleAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
float angle = obj2Float(animation.getAnimatedValue("angle"));
Canvas canvas = holder.lockCanvas(null);
if(canvas != null){
long nowTime = System.currentTimeMillis();
int rate = (int) (nowTime - time) / (CIRCLE_DURATION * (repeatCount + 1) / 100);
if (rate <= 100) {
canvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR);
canvas.drawText("正在加载" + rate + "%", getMeasuredWidth() / 2 - radius / 2,
getMeasuredHeight() / 2, loadingPaint);
}
canvas.drawCircle(getMeasuredWidth() / 2, getMeasuredHeight() / 2 - Utility.dip2px(context, 10),
radius, circlePaint);
canvas.drawArc(rectF2, 180 + angle, 30, false, arcPaint);
holder.unlockCanvasAndPost(canvas);
}
}
});
circleAnimator.addListener(new Animator.AnimatorListener() {
@Override
public void onAnimationStart(Animator animation) {
time = System.currentTimeMillis();
}
@Override
public void onAnimationEnd(Animator animation) {
chartAnimator.start();
}
@Override
public void onAnimationCancel(Animator animation) {
}
@Override
public void onAnimationRepeat(Animator animation) {
}
});
}
private void initPaint() {
area1Paint = new Paint();
area1Paint.setAntiAlias(true);
area1Paint.setStyle(Paint.Style.FILL);
area1Paint.setTextSize((Utility.dip2px(context, 15)));
area1Paint.setColor(context.getResources().getColor(R.color.background_blue));
area2Paint = new Paint();
area2Paint.setAntiAlias(true);
area2Paint.setStyle(Paint.Style.FILL);
area2Paint.setTextSize((Utility.dip2px(context, 15)));
area2Paint.setColor(context.getResources().getColor(R.color.chart_blue));
area3Paint = new Paint();
area3Paint.setAntiAlias(true);
area3Paint.setStyle(Paint.Style.FILL);
area3Paint.setTextSize((Utility.dip2px(context, 15)));
area3Paint.setColor(context.getResources().getColor(R.color.light_gary));
circlePaint = new Paint();
circlePaint.setAntiAlias(true);
circlePaint.setStrokeWidth(Utility.dip2px(context, 5));
circlePaint.setStyle(Paint.Style.STROKE);
circlePaint.setColor(context.getResources().getColor(R.color.background_gray));
arcPaint = new Paint();
arcPaint.setAntiAlias(true);
arcPaint.setStrokeWidth(Utility.dip2px(context, 5));
arcPaint.setStyle(Paint.Style.STROKE);
arcPaint.setColor(context.getResources().getColor(R.color.textcolor_gray));
loadingPaint = new Paint();
loadingPaint.setTextSize((Utility.dip2px(context, 15)));
loadingPaint.setColor(context.getResources().getColor(R.color.textcolor_gray));
textPaint = new Paint();
textPaint.setTextSize((Utility.dip2px(context, 15)));
textPaint.setColor(context.getResources().getColor(R.color.black));
}
private float obj2Float(Object o) {
return ((Number) o).floatValue();
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
chartLeft = getMeasuredWidth() / 2 - radius;
chartTop = getMeasuredHeight() / 2 - radius - Utility.dip2px(context, 10);
chartRight = getMeasuredWidth() / 2 + radius;
chartBottom = getMeasuredHeight() / 2 + radius - Utility.dip2px(context, 10);
centerDetailLeft = getMeasuredWidth() / 2 - Utility.dip2px(context, 20);
centerDetailTop = getMeasuredHeight() / 2 + radius + Utility.dip2px(context, 15);
centerDetailRight = getMeasuredWidth() / 2;
centerDetailBottom = getMeasuredHeight() / 2 + radius + Utility.dip2px(context, 35);
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
}
@Override
public void surfaceCreated(SurfaceHolder holder) {
rectF = new RectF(chartLeft - Utility.dip2px(context, 5), chartTop - Utility.dip2px(context, 5), chartRight +
Utility.dip2px(context, 5), chartBottom + Utility.dip2px(context, 5));
rectF2 = new RectF(chartLeft, chartTop, chartRight, chartBottom);
// valueAnimator.start();
}
@Override
public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {
}
@Override
public void surfaceDestroyed(SurfaceHolder holder) {
circleAnimator.cancel();
chartAnimator.cancel();
}
private void drawDetail(Canvas canvas) {
canvas.drawRect(centerDetailLeft - Utility.dip2px(context, 150), centerDetailTop,
centerDetailRight - Utility.dip2px(context, 150), centerDetailBottom, area1Paint);
canvas.drawRect(centerDetailLeft, centerDetailTop, centerDetailRight, centerDetailBottom, area2Paint);
canvas.drawRect(centerDetailLeft + Utility.dip2px(context, 150), centerDetailTop,
centerDetailRight + Utility.dip2px(context, 150), centerDetailBottom, area3Paint);
drawText(canvas);
}
private void drawText(Canvas canvas) {
canvas.drawText("本软件", centerDetailRight - Utility.dip2px(context, 150) + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 10), area1Paint);
canvas.drawText("200MB", centerDetailRight - Utility.dip2px(context, 150) + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 25), textPaint);
canvas.drawText("其他", centerDetailRight + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 10), area2Paint);
canvas.drawText("24.1GB", centerDetailRight + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 25), textPaint);
canvas.drawText("可用", centerDetailRight + Utility.dip2px(context, 150) + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 10), area3Paint);
canvas.drawText("30GB", centerDetailRight + Utility.dip2px(context, 150) + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 25), textPaint);
}
public void show() {
circleAnimator.setRepeatCount(repeatCount);
circleAnimator.start();
}
public void setArea1Color(int color) {
area1Paint.setColor(color);
}
public void setArea2Color(int color) {
area2Paint.setColor(color);
}
public void setArea3Color(int color) {
area3Paint.setColor(color);
}
public void setRadius(float radius) {
this.radius = radius;
}
public void setScale(float total, float area1, float area2){
area1Angle = area1/total * 360;
area2Angle = area2/total * 360;
}
public void setRepeatCount(int repeatCount){
this.repeatCount = repeatCount;
}
}

效果：

模仿微信的效果基本显示出来了，但是当区域改变的时候，会不停闪烁，其实下面标注信息的小正方形也在闪烁，只不过我已经修改好了。

查了网上许多方法都没有给出一个很直接的答案，大部分都是说要对surfaceView前后缓存都进行绘制，这样就不产生闪烁问题。还有一种方法就是通过背景覆盖，让A缓冲在该区域的背景与B缓冲相同，这样自然而然切换的时候，就不会看到缓存交替而产生的闪烁问题了。

关于第一种，我并不是很理解，说是每次要改变前后两个缓冲，不能只变一个。。。。。。（网上都是这么说，但是我到底怎么改才算改！！？）

第二种方法，我经过了多次尝试实现了，通过切换画笔之后，每次画图都覆盖上一层，这样保持了之前闪烁部分的缓存一致。

该部分为找到的一些资料：

双缓存(Double-buffer)与黑屏闪烁

每个SurfaceView 对象有两个独立的graphic buffer，官方SDK将它们称作"front buffer"和"back buffer"。

常规的"double-buffer"会这么做：每一帧的数据都被绘制到back buffer，然后back buffer的内容被持续翻转(flip)到front buffer；屏幕一直显示front buffer。但Android SurfaceView的"double-buffer"却是这么做的：在buffer A里绘制内容，然后让屏幕显示buffer A; 下一个循环，在buffer B里绘制内容，然后让屏幕显示buffer B; 如此往复。于是，屏幕上显示的内容依次来自buffer A, B, A, B,....这样看来，两个buffer其实没有主从的分别，与其称之为"front buffer""back buffer"，毋宁称之为"buffer A""buffer B"。

Android中"double-buffer"的实现机制，可以很好地解释闪屏现象。在第一个"lockCanvas-drawCanvas-unlockCanvasAndPost"循环中，更新的是buffer A的内容；到下一个"lockCanvas-drawCanvas-unlockCanvasAndPost"循环中，更新的是buffer B的内容。如果buffer A与buffer B中某个buffer内容为空，当屏幕轮流显示它们时，就会出现画面黑屏闪烁现象。

解决方法

出现黑屏是因为buffer A与buffer B中一者内容为空，而且为空的一方还被post到了屏幕。于是有两种解决思路：

不让空buffer出现：每次向一个buffer写完内容并post之后，顺便用这个buffer的内容填充另一个buffer。这样能保证两个buffer的内容是同步的，缺点是做了无用功，耗费性能。

不post空buffer到屏幕：当准备更新内容时，先判断内容是否为空，只有非空时才启动"lockCanvas-drawCanvas-unlockCanvasAndPost"这个流程。

就好比，A缓存是白色，B缓冲是黑色（也就是前后surfaceView的缓存）。而黑色是surfaceView的默认色。比如下面的伪代码，通过线程不停的绘制：


canvas = holder.lockCanvas();
if(flag) {
canvas.drawColor(Color.WHITE);
}
holder.unlockCanvasAndPost(canvas);
flag = false;

看似没有什么问题，但是在实际过程却一直在黑白闪烁，这就是因为，虽然A我们每次都绘制了，但是B一直没变还是黑色。这时，我们通过覆盖，讲背景变为白色，就解决了这个问题，而我的解决方法也类似于这种。

下面贴出代码：


package xiaoqi.expandablechartview;
import android.animation.Animator;
import android.animation.PropertyValuesHolder;
import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.PixelFormat;
import android.graphics.PorterDuff;
import android.graphics.RectF;
import android.util.AttributeSet;
import android.view.SurfaceHolder;
import android.view.SurfaceView;
import android.view.animation.LinearInterpolator;
public class ChartView extends SurfaceView implements SurfaceHolder.Callback {
private Context context;
private SurfaceHolder holder;
private ValueAnimator chartAnimator;
private ValueAnimator circleAnimator;
//中间内存信息方块的坐标
private float centerDetailLeft;
private float centerDetailTop;
private float centerDetailRight;
private float centerDetailBottom;
//chart外接正方形坐标
private float chartLeft;
private float chartTop;
private float chartRight;
private float chartBottom;
//起始角度
private float startAngle = 270;
//半径
private float radius;
//各区域角度
private float area1Angle;
private float area2Angle;
//区域的量
private float total;
private float area1;
private float area2;
private long time;
private int repeatCount = 2;
//是否为第一次显示，用于防止surface闪烁
private boolean area1IsFirstShow = true;
private boolean area2IsFirstShow = true;
//大扇形外接正方形
private RectF rectF;
//小扇形外接正方形
private RectF rectF2;
private Paint area1Paint;
private Paint area2Paint;
private Paint area3Paint;
private Paint circlePaint;
private Paint arcPaint;
private Paint loadingPaint;
private Paint textPaint;
private static final int CIRCLE_DURATION = 1000;
public ChartView(Context context) {
super(context);
this.context = context;
init();
}
public ChartView(Context context, AttributeSet attrs) {
super(context, attrs);
this.context = context;
init();
}
public ChartView(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
this.context = context;
init();
}
private void init() {
radius = Utility.dip2px(context, 100);
holder = getHolder();
holder.addCallback(this);
setZOrderOnTop(true);
holder.setFormat(PixelFormat.TRANSLUCENT);
initPaint();
initAnimator();
}
private void initAnimator() {
PropertyValuesHolder angleValues = PropertyValuesHolder.ofFloat("angle", 0f, 360f);
chartAnimator = ValueAnimator.ofPropertyValuesHolder(angleValues);
chartAnimator.setDuration(2000);
chartAnimator.setInterpolator(new LinearInterpolator());
chartAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
float angle = obj2Float(animation.getAnimatedValue("angle"));
Canvas canvas = holder.lockCanvas(null);
if(canvas != null){
canvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR);
drawDetail(canvas);
// canvas.setDrawFilter(new PaintFlagsDrawFilter(0, Paint.ANTI_ALIAS_FLAG | Paint.FILTER_BITMAP_FLAG));
if (!area1IsFirstShow) {
canvas.drawArc(rectF, startAngle, area1Angle, true, area1Paint);
}
if (!area2IsFirstShow) {
canvas.drawArc(rectF2, area1Angle + startAngle, area2Angle, true, area2Paint);
}
if (angle < area1Angle) {
canvas.drawArc(rectF, startAngle, angle, true, area1Paint);
} else if (angle <= area2Angle + area1Angle) {
if (area1IsFirstShow) {
area1IsFirstShow = false;
canvas.drawArc(rectF, startAngle, area1Angle, true, area1Paint);
} else {
canvas.drawArc(rectF2, startAngle+area1Angle, angle - area1Angle, true, area2Paint);
}
} else {
if (area2IsFirstShow) {
area2IsFirstShow = false;
canvas.drawArc(rectF2, area1Angle + startAngle, area2Angle, true, area2Paint);
} else {
canvas.drawArc(rectF2, startAngle + area1Angle + area2Angle, angle - area2Angle - area1Angle,
true, area3Paint);
}
}
holder.unlockCanvasAndPost(canvas);
}
}
});
circleAnimator = ValueAnimator.ofPropertyValuesHolder(angleValues);
circleAnimator.setInterpolator(new LinearInterpolator());
circleAnimator.setDuration(CIRCLE_DURATION);
circleAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
float angle = obj2Float(animation.getAnimatedValue("angle"));
Canvas canvas = holder.lockCanvas(null);
if(canvas != null){
long nowTime = System.currentTimeMillis();
int rate = (int) (nowTime - time) / (CIRCLE_DURATION * (repeatCount + 1) / 100);
if (rate <= 100) {
canvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR);
canvas.drawText("正在加载" + rate + "%", getMeasuredWidth() / 2 - radius / 2,
getMeasuredHeight() / 2, loadingPaint);
}
canvas.drawCircle(getMeasuredWidth() / 2, getMeasuredHeight() / 2 - Utility.dip2px(context, 10),
radius, circlePaint);
canvas.drawArc(rectF2, 180 + angle, 30, false, arcPaint);
holder.unlockCanvasAndPost(canvas);
}
}
});
circleAnimator.addListener(new Animator.AnimatorListener() {
@Override
public void onAnimationStart(Animator animation) {
time = System.currentTimeMillis();
}
@Override
public void onAnimationEnd(Animator animation) {
chartAnimator.start();
}
@Override
public void onAnimationCancel(Animator animation) {
}
@Override
public void onAnimationRepeat(Animator animation) {
}
});
}
private void initPaint() {
area1Paint = new Paint();
area1Paint.setAntiAlias(true);
area1Paint.setStyle(Paint.Style.FILL);
area1Paint.setTextSize((Utility.dip2px(context, 15)));
area1Paint.setColor(context.getResources().getColor(R.color.background_blue));
area2Paint = new Paint();
area2Paint.setAntiAlias(true);
area2Paint.setStyle(Paint.Style.FILL);
area2Paint.setTextSize((Utility.dip2px(context, 15)));
area2Paint.setColor(context.getResources().getColor(R.color.chart_blue));
area3Paint = new Paint();
area3Paint.setAntiAlias(true);
area3Paint.setStyle(Paint.Style.FILL);
area3Paint.setTextSize((Utility.dip2px(context, 15)));
area3Paint.setColor(context.getResources().getColor(R.color.light_gary));
circlePaint = new Paint();
circlePaint.setAntiAlias(true);
circlePaint.setStrokeWidth(Utility.dip2px(context, 5));
circlePaint.setStyle(Paint.Style.STROKE);
circlePaint.setColor(context.getResources().getColor(R.color.background_gray));
arcPaint = new Paint();
arcPaint.setAntiAlias(true);
arcPaint.setStrokeWidth(Utility.dip2px(context, 5));
arcPaint.setStyle(Paint.Style.STROKE);
arcPaint.setColor(context.getResources().getColor(R.color.textcolor_gray));
loadingPaint = new Paint();
loadingPaint.setTextSize((Utility.dip2px(context, 15)));
loadingPaint.setColor(context.getResources().getColor(R.color.textcolor_gray));
textPaint = new Paint();
textPaint.setTextSize((Utility.dip2px(context, 15)));
textPaint.setColor(context.getResources().getColor(R.color.black));
}
private float obj2Float(Object o) {
return ((Number) o).floatValue();
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
chartLeft = getMeasuredWidth() / 2 - radius;
chartTop = getMeasuredHeight() / 2 - radius - Utility.dip2px(context, 10);
chartRight = getMeasuredWidth() / 2 + radius;
chartBottom = getMeasuredHeight() / 2 + radius - Utility.dip2px(context, 10);
centerDetailLeft = getMeasuredWidth() / 2 - Utility.dip2px(context, 20);
centerDetailTop = getMeasuredHeight() / 2 + radius + Utility.dip2px(context, 15);
centerDetailRight = getMeasuredWidth() / 2;
centerDetailBottom = getMeasuredHeight() / 2 + radius + Utility.dip2px(context, 35);
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
}
@Override
public void surfaceCreated(SurfaceHolder holder) {
rectF = new RectF(chartLeft - Utility.dip2px(context, 5), chartTop - Utility.dip2px(context, 5), chartRight +
Utility.dip2px(context, 5), chartBottom + Utility.dip2px(context, 5));
rectF2 = new RectF(chartLeft, chartTop, chartRight, chartBottom);
// valueAnimator.start();
}
@Override
public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {
}
@Override
public void surfaceDestroyed(SurfaceHolder holder) {
circleAnimator.cancel();
chartAnimator.cancel();
}
private void drawDetail(Canvas canvas) {
canvas.drawRect(centerDetailLeft - Utility.dip2px(context, 150), centerDetailTop,
centerDetailRight - Utility.dip2px(context, 150), centerDetailBottom, area1Paint);
canvas.drawRect(centerDetailLeft, centerDetailTop, centerDetailRight, centerDetailBottom, area2Paint);
canvas.drawRect(centerDetailLeft + Utility.dip2px(context, 150), centerDetailTop,
centerDetailRight + Utility.dip2px(context, 150), centerDetailBottom, area3Paint);
drawText(canvas);
}
private void drawText(Canvas canvas) {
canvas.drawText("本软件", centerDetailRight - Utility.dip2px(context, 150) + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 10), area1Paint);
canvas.drawText("200MB", centerDetailRight - Utility.dip2px(context, 150) + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 25), textPaint);
canvas.drawText("其他", centerDetailRight + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 10), area2Paint);
canvas.drawText("24.1GB", centerDetailRight + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 25), textPaint);
canvas.drawText("可用", centerDetailRight + Utility.dip2px(context, 150) + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 10), area3Paint);
canvas.drawText("30GB", centerDetailRight + Utility.dip2px(context, 150) + Utility.dip2px(context, 5),
centerDetailTop + Utility.dip2px(context, 25), textPaint);
}
public void show() {
circleAnimator.setRepeatCount(repeatCount);
circleAnimator.start();
}
public void setArea1Color(int color) {
area1Paint.setColor(color);
}
public void setArea2Color(int color) {
area2Paint.setColor(color);
}
public void setArea3Color(int color) {
area3Paint.setColor(color);
}
public void setRadius(float radius) {
this.radius = radius;
}
public void setScale(float total, float area1, float area2){
area1Angle = area1/total * 360;
area2Angle = area2/total * 360;
}
public void setRepeatCount(int repeatCount){
this.repeatCount = repeatCount;
}
}

效果：

同时建议每个图形都用自己的paint，而不是通过重新set不同设置来调用paint，因为在使用时，我发现，因为很多地方用的是同一个paint也导致了闪烁，而为每个图形都创建了自己的paint之后就好了。

以上所述是小编给大家介绍的Android仿微信清理内存图表动画（解决surfaceView屏幕闪烁问题）demo实例详解，希望对大家有所帮助，如果大家有任何疑问请给我留言，小编会及时回复大家的。在此也非常感谢大家对PHPERZ网站的支持！

Android仿微信清理内存图表动画（解决surfaceView屏幕闪烁问题）demo实例详解

Android移动端操作系统

后端技术

前端技术

数据库

热门框架

常用IDE

其他
