Spring Framework 开源j2ee框架

Spring是什么呢?首先它是一个开源的项目,而且目前非常活跃;它是一个基于IOC和AOP的构架多层j2ee系统的框架,但它不强迫你必须在每一层 中必须使用Spring,因为它模块化的很好,允许你根据自己的需要选择使用它的某一个模块;它实现了很优雅的MVC,对不同的数据访问技术提供了统一的接口,采用IOC使得可以很容易的实现bean的装配,提供了简洁的AOP并据此实现Transcation Managment,等等


这篇文章主要给大家介绍了关于Spring MVC集成springfox-swagger2构建restful API的相关资料,文中介绍介绍的非常详细,需要的朋友可以参考借鉴,下面来一起看看吧。

前言

在集成springfox-swagger2之前,我也尝试着集成了swagger-springmvc,方式差不多,但是swagger-springmvc相对麻烦一点,因为要把它的静态文件copy到自己的项目中。所以还是用新版本的。

至于两者有什么不同,为什么进行版本变更请参见官方说明文档

方法如下

这里先写下需要的pom.xml配置(我引用的2.4.0,相对稳定)


<dependency>
 <groupId>io.springfox</groupId>
 <artifactId>springfox-swagger2</artifactId>
 <version>2.4.0</version>
 </dependency>
 <dependency>
 <groupId>io.springfox</groupId>
 <artifactId>springfox-swagger-ui</artifactId>
 <version>2.4.0</version>
 </dependency>

还需要在spring-mvc.xml中添加映射静态的配置:


<mvc:default-servlet-handler />

然后就是swagger2的配置类:


package com.xingguo.logistics.swagger;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class SwaggerConfig {

 @Bean
 public Docket buildDocket(){
 return new Docket(DocumentationType.SWAGGER_2)
  .apiInfo(buildApiInf())
  .select() .apis(RequestHandlerSelectors.basePackage("com.xingguo.logistics.controller"))//controller路径
  .paths(PathSelectors.any())
  .build();
 }

 private ApiInfo buildApiInf(){
 return new ApiInfoBuilder()
  .title("xingguo大标题")
  .termsOfServiceUrl("http://blog.csdn.net/u014231523网址链接")
  .description("springmvc swagger2")
  .contact(new Contact("diaoxingguo", "http://blog.csdn.net/u014231523", "diaoxingguo@163.com"))
  .build();

 }
}

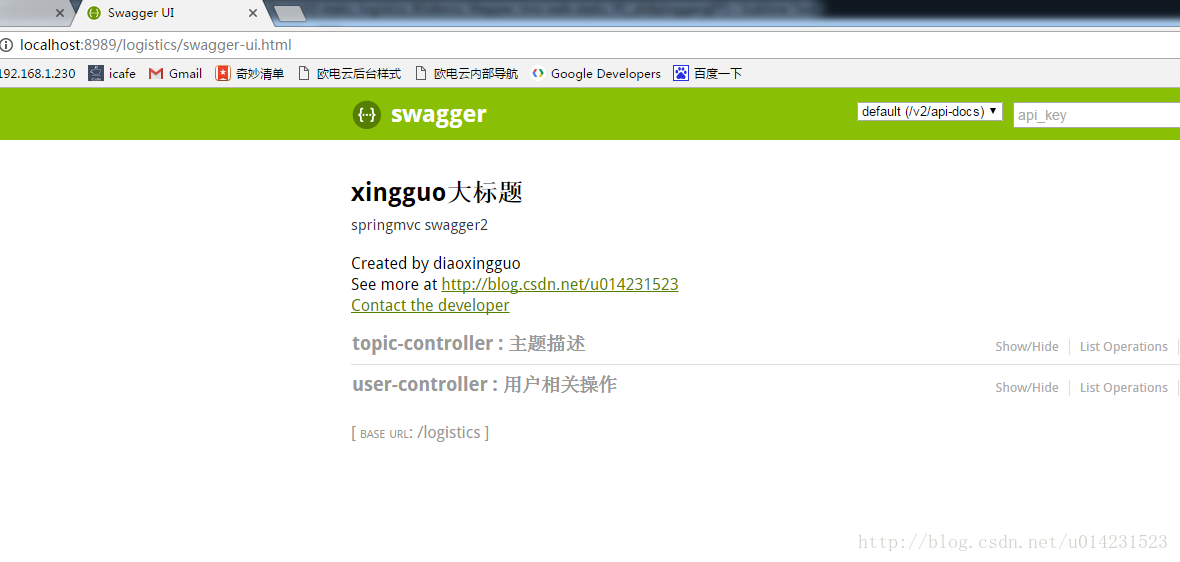

然后运行项目,输入自己的url。

http://{ip}:{port}/{projectname}/swagger-ui.html#/

我的url:

http://localhost:8989/logistics/swagger-ui.html#/

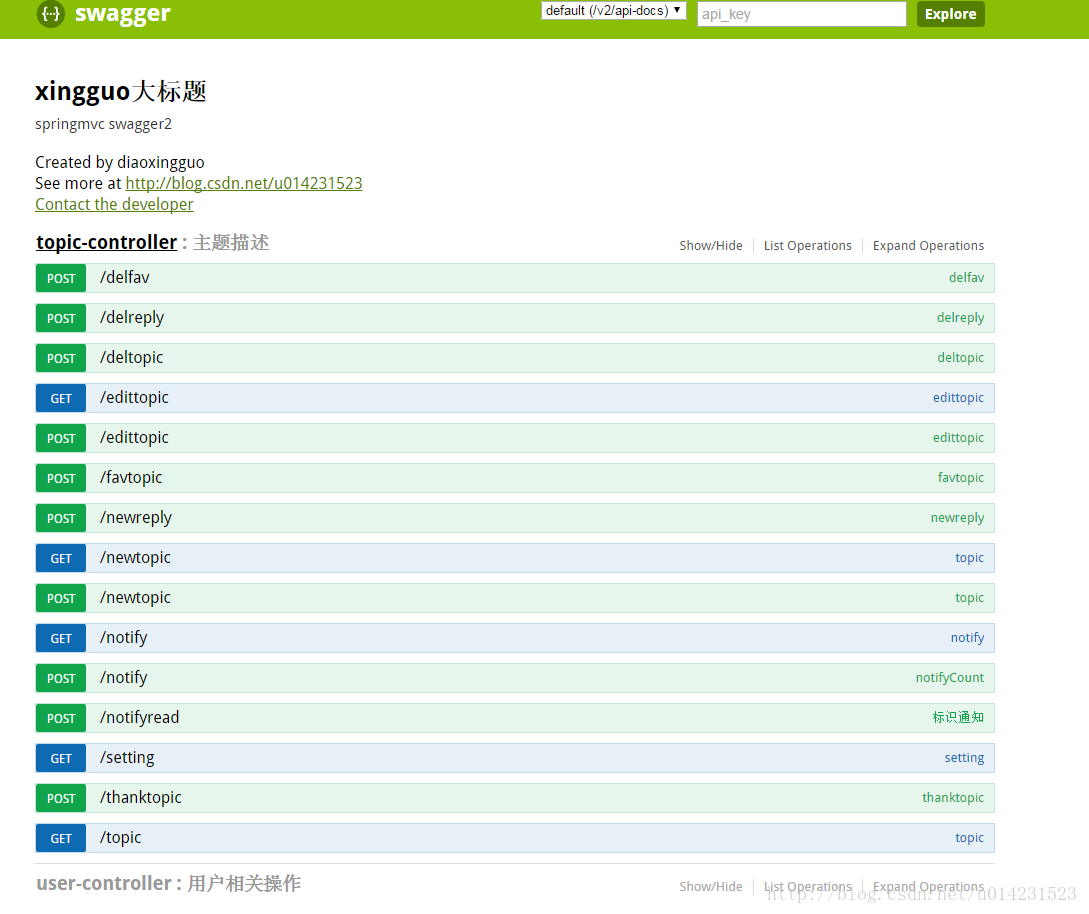

然后就可以看到效果图:


它会把按照controller,把所有的接口都加载进来。

我的目录结构如图:

然后,就是接口名称和参数的说明:

常用注解:

      - @Api()用于类名

      - @ApiOperation()用于方法名

      - @ApiParam()用于参数说明

      - @ApiModel()用于实体类

      - @ApiModelProperty用于实体类属性

更详细的说明请参见官方注解说明文档

使用方法如图:


@Controller
//类上使用@Api
@Api(value="用户controller",description="用户相关操作")
public class UserController {

 @RequestMapping(value="index",method=RequestMethod.POST)
 //方法上使用@ApiOperation
 @ApiOperation(value="首页",notes="跳转到首页")
 //参数使用@ApiParam
 public Object getIndex(@ApiParam(name="topic实体",value="json格式",required=true) @RequestBody Topic topic){
 //业务内容,被我删除了,请忽略,主要看上面的注解
 Object obj = new Object();
 return obj;
 }
}

//一般添加个@ApiModel()就可以,看情况使用里面的属性
@ApiModel(value="Topic", discriminator = "foo", subTypes = {Topic.class})
public class Topic{

}

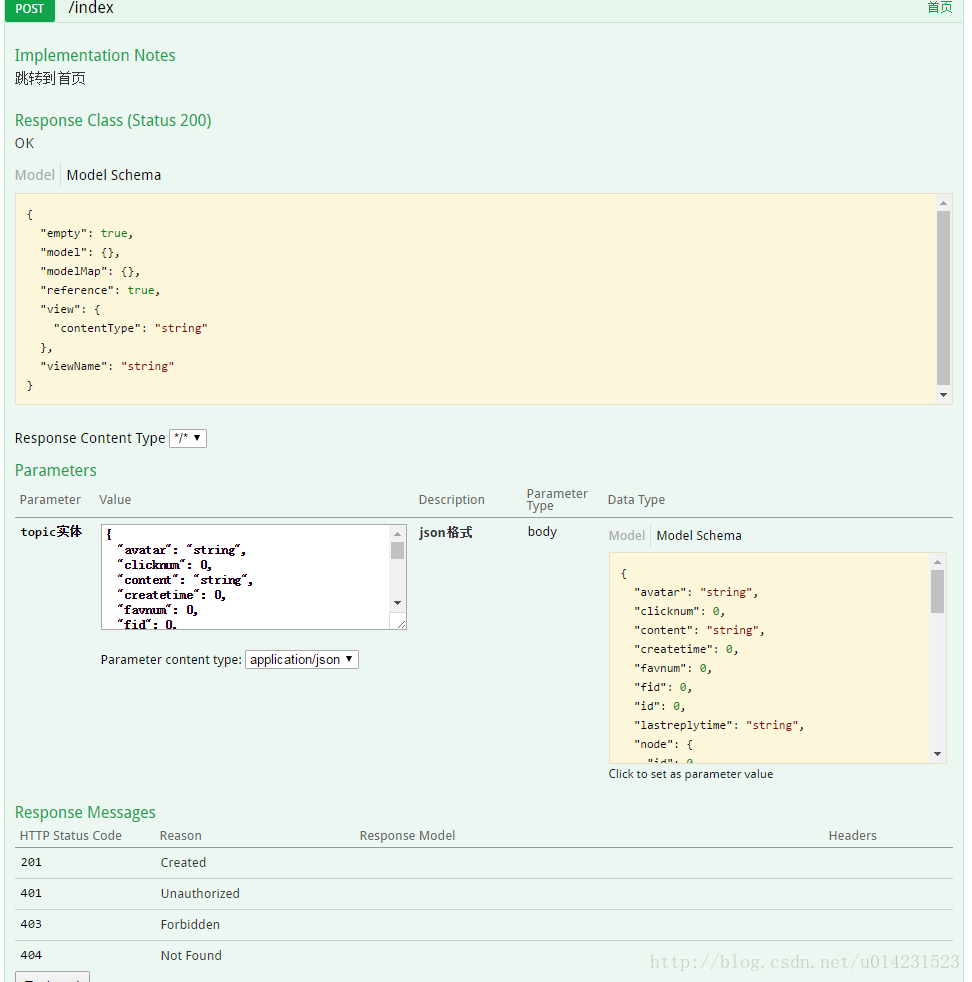

效果图如下:

我在springboot中也集成了swagger2,集成方式基本相同,使用方式也基本一样。请参考Spring Boot集成springfox-swagger2构建restful API的方法教程

总结

以上就是这篇文章的全部内容了,希望本文的内容对大家的学习或者工作能带来一定的帮助,如有疑问大家可以留言交流,谢谢大家对PHPERZ的支持。
