Android系统进程间通信（IPC）机制Binder中的Server启动过程源代码分析

发布于 2016-10-19 13:19:35 | 65 次阅读 | 评论: 0 | 来源: 网友投递

Android移动端操作系统

Android是一种基于Linux的自由及开放源代码的操作系统，主要使用于移动设备，如智能手机和平板电脑，由Google公司和开放手机联盟领导及开发。尚未有统一中文名称，中国大陆地区较多人使用“安卓”或“安致”。

本文主要介绍Android IPC机制Binder中的Server启动过程源代码,这里对Binder 中Server 启动过程中的源码做了详细的介绍，有研究Android源码 Binder 通信的小伙伴可以参考下

在前面一篇文章Android系统进程间通信（IPC）机制Binder中的Server和Client获得Service Manager接口之路中，介绍了在Android系统中Binder进程间通信机制中的Server角色是如何获得Service Manager远程接口的，即defaultServiceManager函数的实现。Server获得了Service Manager远程接口之后，就要把自己的Service添加到Service Manager中去，然后把自己启动起来，等待Client的请求。本文将通过分析源代码了解Server的启动过程是怎么样的。

本文通过一个具体的例子来说明Binder机制中Server的启动过程。我们知道，在Android系统中，提供了多媒体播放的功能，这个功能是以服务的形式来提供的。这里，我们就通过分析MediaPlayerService的实现来了解Media Server的启动过程。

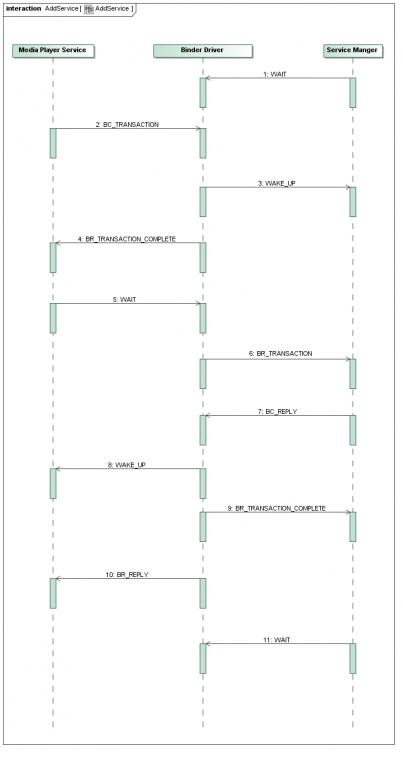

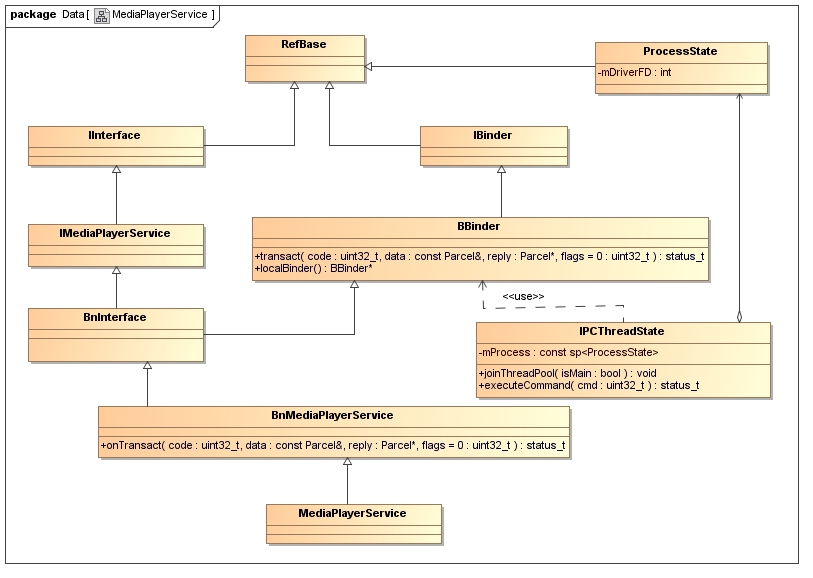

首先，看一下MediaPlayerService的类图，以便我们理解下面要描述的内容。

我们将要介绍的主角MediaPlayerService继承于BnMediaPlayerService类，熟悉Binder机制的同学应该知道BnMediaPlayerService是一个Binder Native类，用来处理Client请求的。BnMediaPlayerService继承于BnInterface<IMediaPlayerService>类，BnInterface是一个模板类，它定义在frameworks/base/include/binder/IInterface.h文件中：


template<typename INTERFACE>
class BnInterface : public INTERFACE, public BBinder
{
public:
 virtual sp<IInterface>  queryLocalInterface(const String16& _descriptor);
 virtual const String16&  getInterfaceDescriptor() const;

protected:
 virtual IBinder*   onAsBinder();
};

这里可以看出，BnMediaPlayerService实际是继承了IMediaPlayerService和BBinder类。IMediaPlayerService和BBinder类又分别继承了IInterface和IBinder类，IInterface和IBinder类又同时继承了RefBase类。

实际上，BnMediaPlayerService并不是直接接收到Client处发送过来的请求，而是使用了IPCThreadState接收Client处发送过来的请求，而IPCThreadState又借助了ProcessState类来与Binder驱动程序交互。有关IPCThreadState和ProcessState的关系，可以参考上一篇文章Android系统进程间通信（IPC）机制Binder中的Server和Client获得Service Manager接口之路，接下来也会有相应的描述。IPCThreadState接收到了Client处的请求后，就会调用BBinder类的transact函数，并传入相关参数，BBinder类的transact函数最终调用BnMediaPlayerService类的onTransact函数，于是，就开始真正地处理Client的请求了。

了解了MediaPlayerService类结构之后，就要开始进入到本文的主题了。

首先，看看MediaPlayerService是如何启动的。启动MediaPlayerService的代码位于frameworks/base/media/mediaserver/main_mediaserver.cpp文件中：


int main(int argc, char** argv)
{
 sp<ProcessState> proc(ProcessState::self());
 sp<IServiceManager> sm = defaultServiceManager();
 LOGI("ServiceManager: %p", sm.get());
 AudioFlinger::instantiate();
 MediaPlayerService::instantiate();
 CameraService::instantiate();
 AudioPolicyService::instantiate();
 ProcessState::self()->startThreadPool();
 IPCThreadState::self()->joinThreadPool();
}

这里我们不关注AudioFlinger和CameraService相关的代码。
先看下面这句代码：

sp<ProcessState> proc(ProcessState::self());

这句代码的作用是通过ProcessState::self()调用创建一个ProcessState实例。ProcessState::self()是ProcessState类的一个静态成员变量，定义在frameworks/base/libs/binder/ProcessState.cpp文件中：


sp<ProcessState> ProcessState::self()
{
 if (gProcess != NULL) return gProcess;

 AutoMutex _l(gProcessMutex);
 if (gProcess == NULL) gProcess = new ProcessState;
 return gProcess;
}

这里可以看出，这个函数作用是返回一个全局唯一的ProcessState实例gProcess。全局唯一实例变量gProcess定义在frameworks/base/libs/binder/Static.cpp文件中：

Mutex gProcessMutex;
sp<ProcessState> gProcess;

再来看ProcessState的构造函数：


ProcessState::ProcessState()
 : mDriverFD(open_driver())
 , mVMStart(MAP_FAILED)
 , mManagesContexts(false)
 , mBinderContextCheckFunc(NULL)
 , mBinderContextUserData(NULL)
 , mThreadPoolStarted(false)
 , mThreadPoolSeq(1)
{
 if (mDriverFD >= 0) {
  // XXX Ideally, there should be a specific define for whether we
  // have mmap (or whether we could possibly have the kernel module
  // availabla).
#if !defined(HAVE_WIN32_IPC)
  // mmap the binder, providing a chunk of virtual address space to receive transactions.
  mVMStart = mmap(0, BINDER_VM_SIZE, PROT_READ, MAP_PRIVATE | MAP_NORESERVE, mDriverFD, 0);
  if (mVMStart == MAP_FAILED) {
   // *sigh*
   LOGE("Using /dev/binder failed: unable to mmap transaction memory.\n");
   close(mDriverFD);
   mDriverFD = -1;
  }
#else
  mDriverFD = -1;
#endif
 }
 if (mDriverFD < 0) {
  // Need to run without the driver, starting our own thread pool.
 }
}

这个函数有两个关键地方，一是通过open_driver函数打开Binder设备文件/dev/binder，并将打开设备文件描述符保存在成员变量mDriverFD中；二是通过mmap来把设备文件/dev/binder映射到内存中。

先看open_driver函数的实现，这个函数同样位于frameworks/base/libs/binder/ProcessState.cpp文件中：


static int open_driver()
{
 if (gSingleProcess) {
  return -1;
 }

 int fd = open("/dev/binder", O_RDWR);
 if (fd >= 0) {
  fcntl(fd, F_SETFD, FD_CLOEXEC);
  int vers;
#if defined(HAVE_ANDROID_OS)
  status_t result = ioctl(fd, BINDER_VERSION, &vers);
#else
  status_t result = -1;
  errno = EPERM;
#endif
  if (result == -1) {
   LOGE("Binder ioctl to obtain version failed: %s", strerror(errno));
   close(fd);
   fd = -1;
  }
  if (result != 0 || vers != BINDER_CURRENT_PROTOCOL_VERSION) {
   LOGE("Binder driver protocol does not match user space protocol!");
   close(fd);
   fd = -1;
  }
#if defined(HAVE_ANDROID_OS)
  size_t maxThreads = 15;
  result = ioctl(fd, BINDER_SET_MAX_THREADS, &maxThreads);
  if (result == -1) {
   LOGE("Binder ioctl to set max threads failed: %s", strerror(errno));
  }
#endif

 } else {
  LOGW("Opening '/dev/binder' failed: %s\n", strerror(errno));
 }
 return fd;
}

这个函数的作用主要是通过open文件操作函数来打开/dev/binder设备文件，然后再调用ioctl文件控制函数来分别执行BINDER_VERSION和BINDER_SET_MAX_THREADS两个命令来和Binder驱动程序进行交互，前者用于获得当前Binder驱动程序的版本号，后者用于通知Binder驱动程序，MediaPlayerService最多可同时启动15个线程来处理Client端的请求。

open在Binder驱动程序中的具体实现，请参考前面一篇文章浅谈Service Manager成为Android进程间通信（IPC）机制Binder守护进程之路，这里不再重复描述。打开/dev/binder设备文件后，Binder驱动程序就为MediaPlayerService进程创建了一个struct binder_proc结构体实例来维护MediaPlayerService进程上下文相关信息。

我们来看一下ioctl文件操作函数执行BINDER_VERSION命令的过程：

status_t result = ioctl(fd, BINDER_VERSION, &vers);

这个函数调用最终进入到Binder驱动程序的binder_ioctl函数中，我们只关注BINDER_VERSION相关的部分逻辑：


static long binder_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{
 int ret;
 struct binder_proc *proc = filp->private_data;
 struct binder_thread *thread;
 unsigned int size = _IOC_SIZE(cmd);
 void __user *ubuf = (void __user *)arg;

 /*printk(KERN_INFO "binder_ioctl: %d:%d %x %lx\n", proc->pid, current->pid, cmd, arg);*/

 ret = wait_event_interruptible(binder_user_error_wait, binder_stop_on_user_error < 2);
 if (ret)
  return ret;

 mutex_lock(&binder_lock);
 thread = binder_get_thread(proc);
 if (thread == NULL) {
  ret = -ENOMEM;
  goto err;
 }

 switch (cmd) {
 ......
 case BINDER_VERSION:
  if (size != sizeof(struct binder_version)) {
   ret = -EINVAL;
   goto err;
  }
  if (put_user(BINDER_CURRENT_PROTOCOL_VERSION, &((struct binder_version *)ubuf)->protocol_version)) {
   ret = -EINVAL;
   goto err;
  }
  break;
 ......
 }
 ret = 0;
err:
  ......
 return ret;
}

很简单，只是将BINDER_CURRENT_PROTOCOL_VERSION写入到传入的参数arg指向的用户缓冲区中去就返回了。BINDER_CURRENT_PROTOCOL_VERSION是一个宏，定义在kernel/common/drivers/staging/android/binder.h文件中：

/* This is the current protocol version. */
#define BINDER_CURRENT_PROTOCOL_VERSION 7

这里为什么要把ubuf转换成struct binder_version之后，再通过其protocol_version成员变量再来写入呢，转了一圈，最终内容还是写入到ubuf中。我们看一下struct binder_version的定义就会明白，同样是在kernel/common/drivers/staging/android/binder.h文件中：


/* Use with BINDER_VERSION, driver fills in fields. */
struct binder_version {
 /* driver protocol version -- increment with incompatible change */
 signed long protocol_version;
};

从注释中可以看出来，这里是考虑到兼容性，因为以后很有可能不是用signed long来表示版本号。

这里有一个重要的地方要注意的是，由于这里是打开设备文件/dev/binder之后，第一次进入到binder_ioctl函数，因此，这里调用binder_get_thread的时候，就会为当前线程创建一个struct binder_thread结构体变量来维护线程上下文信息，具体可以参考浅谈Service Manager成为Android进程间通信（IPC）机制Binder守护进程之路一文。

接着我们再来看一下ioctl文件操作函数执行BINDER_SET_MAX_THREADS命令的过程：

result = ioctl(fd, BINDER_SET_MAX_THREADS, &maxThreads);

这个函数调用最终进入到Binder驱动程序的binder_ioctl函数中，我们只关注BINDER_SET_MAX_THREADS相关的部分逻辑：


static long binder_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{
 int ret;
 struct binder_proc *proc = filp->private_data;
 struct binder_thread *thread;
 unsigned int size = _IOC_SIZE(cmd);
 void __user *ubuf = (void __user *)arg;

 /*printk(KERN_INFO "binder_ioctl: %d:%d %x %lx\n", proc->pid, current->pid, cmd, arg);*/

 ret = wait_event_interruptible(binder_user_error_wait, binder_stop_on_user_error < 2);
 if (ret)
  return ret;

 mutex_lock(&binder_lock);
 thread = binder_get_thread(proc);
 if (thread == NULL) {
  ret = -ENOMEM;
  goto err;
 }

 switch (cmd) {
 ......
 case BINDER_SET_MAX_THREADS:
  if (copy_from_user(&proc->max_threads, ubuf, sizeof(proc->max_threads))) {
   ret = -EINVAL;
   goto err;
  }
  break;
 ......
 }
 ret = 0;
err:
 ......
 return ret;
}

这里实现也是非常简单，只是简单地把用户传进来的参数保存在proc->max_threads中就完毕了。注意，这里再调用binder_get_thread函数的时候，就可以在proc->threads中找到当前线程对应的struct binder_thread结构了，因为前面已经创建好并保存在proc->threads红黑树中。

回到ProcessState的构造函数中，这里还通过mmap函数来把设备文件/dev/binder映射到内存中，这个函数在浅谈Service Manager成为Android进程间通信（IPC）机制Binder守护进程之路一文也已经有详细介绍，这里不再重复描述。宏BINDER_VM_SIZE就定义在ProcessState.cpp文件中：

#define BINDER_VM_SIZE ((1*1024*1024) - (4096 *2))

mmap函数调用完成之后，Binder驱动程序就为当前进程预留了BINDER_VM_SIZE大小的内存空间了。

这样，ProcessState全局唯一变量gProcess就创建完毕了，回到frameworks/base/media/mediaserver/main_mediaserver.cpp文件中的main函数，下一步是调用defaultServiceManager函数来获得Service Manager的远程接口，这个已经在上一篇文章浅谈Android系统进程间通信（IPC）机制Binder中的Server和Client获得Service Manager接口之路有详细描述，读者可以回过头去参考一下。

再接下来，就进入到MediaPlayerService::instantiate函数把MediaPlayerService添加到Service Manger中去了。这个函数定义在frameworks/base/media/libmediaplayerservice/MediaPlayerService.cpp文件中：


void MediaPlayerService::instantiate() {
 defaultServiceManager()->addService(
   String16("media.player"), new MediaPlayerService());
}

我们重点看一下IServiceManger::addService的过程，这有助于我们加深对Binder机制的理解。

在上一篇文章浅谈Android系统进程间通信（IPC）机制Binder中的Server和Client获得Service Manager接口之路中说到，defaultServiceManager返回的实际是一个BpServiceManger类实例，因此，我们看一下BpServiceManger::addService的实现，这个函数实现在frameworks/base/libs/binder/IServiceManager.cpp文件中：


class BpServiceManager : public BpInterface<IServiceManager>
{
public:
 BpServiceManager(const sp<IBinder>& impl)
  : BpInterface<IServiceManager>(impl)
 {
 }

 ......

 virtual status_t addService(const String16& name, const sp<IBinder>& service)
 {
  Parcel data, reply;
  data.writeInterfaceToken(IServiceManager::getInterfaceDescriptor());
  data.writeString16(name);
  data.writeStrongBinder(service);
  status_t err = remote()->transact(ADD_SERVICE_TRANSACTION, data, &reply);
  return err == NO_ERROR ? reply.readExceptionCode()
 }

 ......

};

这里的Parcel类是用来于序列化进程间通信数据用的。
先来看这一句的调用：

data.writeInterfaceToken(IServiceManager::getInterfaceDescriptor());

IServiceManager::getInterfaceDescriptor()返回来的是一个字符串，即"android.os.IServiceManager"，具体可以参考IServiceManger的实现。我们看一下Parcel::writeInterfaceToken的实现，位于frameworks/base/libs/binder/Parcel.cpp文件中：


// Write RPC headers. (previously just the interface token)
status_t Parcel::writeInterfaceToken(const String16& interface)
{
 writeInt32(IPCThreadState::self()->getStrictModePolicy() |
    STRICT_MODE_PENALTY_GATHER);
 // currently the interface identification token is just its name as a string
 return writeString16(interface);
}

它的作用是写入一个整数和一个字符串到Parcel中去。

再来看下面的调用：

data.writeString16(name);

这里又是写入一个字符串到Parcel中去，这里的name即是上面传进来的“media.player”字符串。
往下看：

data.writeStrongBinder(service);

这里定入一个Binder对象到Parcel去。我们重点看一下这个函数的实现，因为它涉及到进程间传输Binder实体的问题，比较复杂，需要重点关注，同时，也是理解Binder机制的一个重点所在。注意，这里的service参数是一个MediaPlayerService对象。


status_t Parcel::writeStrongBinder(const sp<IBinder>& val)
{
 return flatten_binder(ProcessState::self(), val, this);
}

看到flatten_binder函数，是不是似曾相识的感觉？我们在前面一篇文章浅谈Service Manager成为Android进程间通信（IPC）机制Binder守护进程之路中，曾经提到在Binder驱动程序中，使用struct flat_binder_object来表示传输中的一个binder对象，它的定义如下所示：


/*
 * This is the flattened representation of a Binder object for transfer
 * between processes. The 'offsets' supplied as part of a binder transaction
 * contains offsets into the data where these structures occur. The Binder
 * driver takes care of re-writing the structure type and data as it moves
 * between processes.
 */
struct flat_binder_object {
 /* 8 bytes for large_flat_header. */
 unsigned long  type;
 unsigned long  flags;

 /* 8 bytes of data. */
 union {
  void  *binder; /* local object */
  signed long handle;  /* remote object */
 };

 /* extra data associated with local object */
 void   *cookie;
};

各个成员变量的含义请参考资料Android Binder设计与实现。
我们进入到flatten_binder函数看看：


status_t flatten_binder(const sp<ProcessState>& proc,
 const sp<IBinder>& binder, Parcel* out)
{
 flat_binder_object obj;

 obj.flags = 0x7f | FLAT_BINDER_FLAG_ACCEPTS_FDS;
 if (binder != NULL) {
  IBinder *local = binder->localBinder();
  if (!local) {
   BpBinder *proxy = binder->remoteBinder();
   if (proxy == NULL) {
    LOGE("null proxy");
   }
   const int32_t handle = proxy ? proxy->handle() : 0;
   obj.type = BINDER_TYPE_HANDLE;
   obj.handle = handle;
   obj.cookie = NULL;
  } else {
   obj.type = BINDER_TYPE_BINDER;
   obj.binder = local->getWeakRefs();
   obj.cookie = local;
  }
 } else {
  obj.type = BINDER_TYPE_BINDER;
  obj.binder = NULL;
  obj.cookie = NULL;
 }

 return finish_flatten_binder(binder, obj, out);
}

首先是初始化flat_binder_object的flags域：

obj.flags = 0x7f | FLAT_BINDER_FLAG_ACCEPTS_FDS;

0x7f表示处理本Binder实体请求数据包的线程的最低优先级，FLAT_BINDER_FLAG_ACCEPTS_FDS表示这个Binder实体可以接受文件描述符，Binder实体在收到文件描述符时，就会在本进程中打开这个文件。

传进来的binder即为MediaPlayerService::instantiate函数中new出来的MediaPlayerService实例，因此，不为空。又由于MediaPlayerService继承自BBinder类，它是一个本地Binder实体，因此binder->localBinder返回一个BBinder指针，而且肯定不为空，于是执行下面语句：


obj.type = BINDER_TYPE_BINDER;
obj.binder = local->getWeakRefs();
obj.cookie = local;

设置了flat_binder_obj的其他成员变量，注意，指向这个Binder实体地址的指针local保存在flat_binder_obj的成员变量cookie中。

函数调用finish_flatten_binder来将这个flat_binder_obj写入到Parcel中去：


inline static status_t finish_flatten_binder(
 const sp<IBinder>& binder, const flat_binder_object& flat, Parcel* out)
{
 return out->writeObject(flat, false);
}

Parcel::writeObject的实现如下：


status_t Parcel::writeObject(const flat_binder_object& val, bool nullMetaData)
{
 const bool enoughData = (mDataPos+sizeof(val)) <= mDataCapacity;
 const bool enoughObjects = mObjectsSize < mObjectsCapacity;
 if (enoughData && enoughObjects) {
restart_write:
  *reinterpret_cast<flat_binder_object*>(mData+mDataPos) = val;

  // Need to write meta-data?
  if (nullMetaData || val.binder != NULL) {
   mObjects[mObjectsSize] = mDataPos;
   acquire_object(ProcessState::self(), val, this);
   mObjectsSize++;
  }

  // remember if it's a file descriptor
  if (val.type == BINDER_TYPE_FD) {
   mHasFds = mFdsKnown = true;
  }

  return finishWrite(sizeof(flat_binder_object));
 }

 if (!enoughData) {
  const status_t err = growData(sizeof(val));
  if (err != NO_ERROR) return err;
 }
 if (!enoughObjects) {
  size_t newSize = ((mObjectsSize+2)*3)/2;
  size_t* objects = (size_t*)realloc(mObjects, newSize*sizeof(size_t));
  if (objects == NULL) return NO_MEMORY;
  mObjects = objects;
  mObjectsCapacity = newSize;
 }

 goto restart_write;
}

这里除了把flat_binder_obj写到Parcel里面之内，还要记录这个flat_binder_obj在Parcel里面的偏移位置：

mObjects[mObjectsSize] = mDataPos;

这里因为，如果进程间传输的数据间带有Binder对象的时候，Binder驱动程序需要作进一步的处理，以维护各个Binder实体的一致性，下面我们将会看到Binder驱动程序是怎么处理这些Binder对象的。

再回到BpServiceManager::addService函数中，调用下面语句：

status_t err = remote()->transact(ADD_SERVICE_TRANSACTION, data, &reply);

回到浅谈Android系统进程间通信（IPC）机制Binder中的Server和Client获得Service Manager接口之路一文中的类图中去看一下，这里的remote成员函数来自于BpRefBase类，它返回一个BpBinder指针。因此，我们继续进入到BpBinder::transact函数中去看看：


status_t BpBinder::transact(
 uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
 // Once a binder has died, it will never come back to life.
 if (mAlive) {
  status_t status = IPCThreadState::self()->transact(
   mHandle, code, data, reply, flags);
  if (status == DEAD_OBJECT) mAlive = 0;
  return status;
 }

 return DEAD_OBJECT;
}

这里又调用了IPCThreadState::transact进执行实际的操作。注意，这里的mHandle为0，code为ADD_SERVICE_TRANSACTION。ADD_SERVICE_TRANSACTION是上面以参数形式传进来的，那mHandle为什么是0呢？因为这里表示的是Service Manager远程接口，它的句柄值一定是0，具体请参考浅谈Android系统进程间通信（IPC）机制Binder中的Server和Client获得Service Manager接口之路一文。

再进入到IPCThreadState::transact函数，看看做了些什么事情：


status_t IPCThreadState::transact(int32_t handle,
         uint32_t code, const Parcel& data,
         Parcel* reply, uint32_t flags)
{
 status_t err = data.errorCheck();

 flags |= TF_ACCEPT_FDS;

 IF_LOG_TRANSACTIONS() {
  TextOutput::Bundle _b(alog);
  alog << "BC_TRANSACTION thr " << (void*)pthread_self() << " / hand "
   << handle << " / code " << TypeCode(code) << ": "
   << indent << data << dedent << endl;
 }

 if (err == NO_ERROR) {
  LOG_ONEWAY(">>>> SEND from pid %d uid %d %s", getpid(), getuid(),
   (flags & TF_ONE_WAY) == 0 ? "READ REPLY" : "ONE WAY");
  err = writeTransactionData(BC_TRANSACTION, flags, handle, code, data, NULL);
 }

 if (err != NO_ERROR) {
  if (reply) reply->setError(err);
  return (mLastError = err);
 }

 if ((flags & TF_ONE_WAY) == 0) {
  #if 0
  if (code == 4) { // relayout
   LOGI(">>>>>> CALLING transaction 4");
  } else {
   LOGI(">>>>>> CALLING transaction %d", code);
  }
  #endif
  if (reply) {
   err = waitForResponse(reply);
  } else {
   Parcel fakeReply;
   err = waitForResponse(&fakeReply);
  }
  #if 0
  if (code == 4) { // relayout
   LOGI("<<<<<< RETURNING transaction 4");
  } else {
   LOGI("<<<<<< RETURNING transaction %d", code);
  }
  #endif

  IF_LOG_TRANSACTIONS() {
   TextOutput::Bundle _b(alog);
   alog << "BR_REPLY thr " << (void*)pthread_self() << " / hand "
    << handle << ": ";
   if (reply) alog << indent << *reply << dedent << endl;
   else alog << "(none requested)" << endl;
  }
 } else {
  err = waitForResponse(NULL, NULL);
 }

 return err;
}

IPCThreadState::transact函数的参数flags是一个默认值为0的参数，上面没有传相应的实参进来，因此，这里就为0。

函数首先调用writeTransactionData函数准备好一个struct binder_transaction_data结构体变量，这个是等一下要传输给Binder驱动程序的。struct binder_transaction_data的定义我们在浅谈Service Manager成为Android进程间通信（IPC）机制Binder守护进程之路一文中有详细描述，读者不妨回过去读一下。这里为了方便描述，将struct binder_transaction_data的定义再次列出来：


struct binder_transaction_data {
 /* The first two are only used for bcTRANSACTION and brTRANSACTION,
  * identifying the target and contents of the transaction.
  */
 union {
  size_t handle; /* target descriptor of command transaction */
  void *ptr; /* target descriptor of return transaction */
 } target;
 void  *cookie; /* target object cookie */
 unsigned int code;  /* transaction command */

 /* General information about the transaction. */
 unsigned int flags;
 pid_t  sender_pid;
 uid_t  sender_euid;
 size_t  data_size; /* number of bytes of data */
 size_t  offsets_size; /* number of bytes of offsets */

 /* If this transaction is inline, the data immediately
  * follows here; otherwise, it ends with a pointer to
  * the data buffer.
  */
 union {
  struct {
   /* transaction data */
   const void *buffer;
   /* offsets from buffer to flat_binder_object structs */
   const void *offsets;
  } ptr;
  uint8_t buf[8];
 } data;
};

writeTransactionData函数的实现如下：


status_t IPCThreadState::writeTransactionData(int32_t cmd, uint32_t binderFlags,
 int32_t handle, uint32_t code, const Parcel& data, status_t* statusBuffer)
{
 binder_transaction_data tr;

 tr.target.handle = handle;
 tr.code = code;
 tr.flags = binderFlags;

 const status_t err = data.errorCheck();
 if (err == NO_ERROR) {
  tr.data_size = data.ipcDataSize();
  tr.data.ptr.buffer = data.ipcData();
  tr.offsets_size = data.ipcObjectsCount()*sizeof(size_t);
  tr.data.ptr.offsets = data.ipcObjects();
 } else if (statusBuffer) {
  tr.flags |= TF_STATUS_CODE;
  *statusBuffer = err;
  tr.data_size = sizeof(status_t);
  tr.data.ptr.buffer = statusBuffer;
  tr.offsets_size = 0;
  tr.data.ptr.offsets = NULL;
 } else {
  return (mLastError = err);
 }

 mOut.writeInt32(cmd);
 mOut.write(&tr, sizeof(tr));

 return NO_ERROR;
}

注意，这里的cmd为BC_TRANSACTION。这个函数很简单，在这个场景下，就是执行下面语句来初始化本地变量tr：


tr.data_size = data.ipcDataSize();
tr.data.ptr.buffer = data.ipcData();
tr.offsets_size = data.ipcObjectsCount()*sizeof(size_t);
tr.data.ptr.offsets = data.ipcObjects();

回忆一下上面的内容，写入到tr.data.ptr.buffer的内容相当于下面的内容：


writeInt32(IPCThreadState::self()->getStrictModePolicy() |
    STRICT_MODE_PENALTY_GATHER);
writeString16("android.os.IServiceManager");
writeString16("media.player");
writeStrongBinder(new MediaPlayerService());

其中包含了一个Binder实体MediaPlayerService，因此需要设置tr.offsets_size就为1，tr.data.ptr.offsets就指向了这个MediaPlayerService的地址在tr.data.ptr.buffer中的偏移量。最后，将tr的内容保存在IPCThreadState的成员变量mOut中。

回到IPCThreadState::transact函数中，接下去看，(flags & TF_ONE_WAY) == 0为true，并且reply不为空，所以最终进入到waitForResponse(reply)这条路径来。我们看一下waitForResponse函数的实现：


status_t IPCThreadState::waitForResponse(Parcel *reply, status_t *acquireResult)
{
 int32_t cmd;
 int32_t err;

 while (1) {
  if ((err=talkWithDriver()) < NO_ERROR) break;
  err = mIn.errorCheck();
  if (err < NO_ERROR) break;
  if (mIn.dataAvail() == 0) continue;

  cmd = mIn.readInt32();

  IF_LOG_COMMANDS() {
   alog << "Processing waitForResponse Command: "
    << getReturnString(cmd) << endl;
  }

  switch (cmd) {
  case BR_TRANSACTION_COMPLETE:
   if (!reply && !acquireResult) goto finish;
   break;

  case BR_DEAD_REPLY:
   err = DEAD_OBJECT;
   goto finish;

  case BR_FAILED_REPLY:
   err = FAILED_TRANSACTION;
   goto finish;

  case BR_ACQUIRE_RESULT:
   {
    LOG_ASSERT(acquireResult != NULL, "Unexpected brACQUIRE_RESULT");
    const int32_t result = mIn.readInt32();
    if (!acquireResult) continue;
    *acquireResult = result ? NO_ERROR : INVALID_OPERATION;
   }
   goto finish;

  case BR_REPLY:
   {
    binder_transaction_data tr;
    err = mIn.read(&tr, sizeof(tr));
    LOG_ASSERT(err == NO_ERROR, "Not enough command data for brREPLY");
    if (err != NO_ERROR) goto finish;

    if (reply) {
     if ((tr.flags & TF_STATUS_CODE) == 0) {
      reply->ipcSetDataReference(
       reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
       tr.data_size,
       reinterpret_cast<const size_t*>(tr.data.ptr.offsets),
       tr.offsets_size/sizeof(size_t),
       freeBuffer, this);
     } else {
      err = *static_cast<const status_t*>(tr.data.ptr.buffer);
      freeBuffer(NULL,
       reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
       tr.data_size,
       reinterpret_cast<const size_t*>(tr.data.ptr.offsets),
       tr.offsets_size/sizeof(size_t), this);
     }
    } else {
     freeBuffer(NULL,
      reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
      tr.data_size,
      reinterpret_cast<const size_t*>(tr.data.ptr.offsets),
      tr.offsets_size/sizeof(size_t), this);
     continue;
    }
   }
   goto finish;

  default:
   err = executeCommand(cmd);
   if (err != NO_ERROR) goto finish;
   break;
  }
 }

finish:
 if (err != NO_ERROR) {
  if (acquireResult) *acquireResult = err;
  if (reply) reply->setError(err);
  mLastError = err;
 }

 return err;
}

这个函数虽然很长，但是主要调用了talkWithDriver函数来与Binder驱动程序进行交互：


status_t IPCThreadState::talkWithDriver(bool doReceive)
{
 LOG_ASSERT(mProcess->mDriverFD >= 0, "Binder driver is not opened");

 binder_write_read bwr;

 // Is the read buffer empty?
 const bool needRead = mIn.dataPosition() >= mIn.dataSize();

 // We don't want to write anything if we are still reading
 // from data left in the input buffer and the caller
 // has requested to read the next data.
 const size_t outAvail = (!doReceive || needRead) ? mOut.dataSize() : 0;

 bwr.write_size = outAvail;
 bwr.write_buffer = (long unsigned int)mOut.data();

 // This is what we'll read.
 if (doReceive && needRead) {
  bwr.read_size = mIn.dataCapacity();
  bwr.read_buffer = (long unsigned int)mIn.data();
 } else {
  bwr.read_size = 0;
 }

 IF_LOG_COMMANDS() {
  TextOutput::Bundle _b(alog);
  if (outAvail != 0) {
   alog << "Sending commands to driver: " << indent;
   const void* cmds = (const void*)bwr.write_buffer;
   const void* end = ((const uint8_t*)cmds)+bwr.write_size;
   alog << HexDump(cmds, bwr.write_size) << endl;
   while (cmds < end) cmds = printCommand(alog, cmds);
   alog << dedent;
  }
  alog << "Size of receive buffer: " << bwr.read_size
   << ", needRead: " << needRead << ", doReceive: " << doReceive << endl;
 }

 // Return immediately if there is nothing to do.
 if ((bwr.write_size == 0) && (bwr.read_size == 0)) return NO_ERROR;

 bwr.write_consumed = 0;
 bwr.read_consumed = 0;
 status_t err;
 do {
  IF_LOG_COMMANDS() {
   alog << "About to read/write, write size = " << mOut.dataSize() << endl;
  }
#if defined(HAVE_ANDROID_OS)
  if (ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr) >= 0)
   err = NO_ERROR;
  else
   err = -errno;
#else
  err = INVALID_OPERATION;
#endif
  IF_LOG_COMMANDS() {
   alog << "Finished read/write, write size = " << mOut.dataSize() << endl;
  }
 } while (err == -EINTR);

 IF_LOG_COMMANDS() {
  alog << "Our err: " << (void*)err << ", write consumed: "
   << bwr.write_consumed << " (of " << mOut.dataSize()
   << "), read consumed: " << bwr.read_consumed << endl;
 }

 if (err >= NO_ERROR) {
  if (bwr.write_consumed > 0) {
   if (bwr.write_consumed < (ssize_t)mOut.dataSize())
    mOut.remove(0, bwr.write_consumed);
   else
    mOut.setDataSize(0);
  }
  if (bwr.read_consumed > 0) {
   mIn.setDataSize(bwr.read_consumed);
   mIn.setDataPosition(0);
  }
  IF_LOG_COMMANDS() {
   TextOutput::Bundle _b(alog);
   alog << "Remaining data size: " << mOut.dataSize() << endl;
   alog << "Received commands from driver: " << indent;
   const void* cmds = mIn.data();
   const void* end = mIn.data() + mIn.dataSize();
   alog << HexDump(cmds, mIn.dataSize()) << endl;
   while (cmds < end) cmds = printReturnCommand(alog, cmds);
   alog << dedent;
  }
  return NO_ERROR;
 }

 return err;
}

这里doReceive和needRead均为1，有兴趣的读者可以自已分析一下。因此，这里告诉Binder驱动程序，先执行write操作，再执行read操作，下面我们将会看到。

最后，通过ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr)进行到Binder驱动程序的binder_ioctl函数，我们只关注cmd为BINDER_WRITE_READ的逻辑：


static long binder_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{
 int ret;
 struct binder_proc *proc = filp->private_data;
 struct binder_thread *thread;
 unsigned int size = _IOC_SIZE(cmd);
 void __user *ubuf = (void __user *)arg;

 /*printk(KERN_INFO "binder_ioctl: %d:%d %x %lx\n", proc->pid, current->pid, cmd, arg);*/

 ret = wait_event_interruptible(binder_user_error_wait, binder_stop_on_user_error < 2);
 if (ret)
  return ret;

 mutex_lock(&binder_lock);
 thread = binder_get_thread(proc);
 if (thread == NULL) {
  ret = -ENOMEM;
  goto err;
 }

 switch (cmd) {
 case BINDER_WRITE_READ: {
  struct binder_write_read bwr;
  if (size != sizeof(struct binder_write_read)) {
   ret = -EINVAL;
   goto err;
  }
  if (copy_from_user(&bwr, ubuf, sizeof(bwr))) {
   ret = -EFAULT;
   goto err;
  }
  if (binder_debug_mask & BINDER_DEBUG_READ_WRITE)
   printk(KERN_INFO "binder: %d:%d write %ld at %08lx, read %ld at %08lx\n",
   proc->pid, thread->pid, bwr.write_size, bwr.write_buffer, bwr.read_size, bwr.read_buffer);
  if (bwr.write_size > 0) {
   ret = binder_thread_write(proc, thread, (void __user *)bwr.write_buffer, bwr.write_size, &bwr.write_consumed);
   if (ret < 0) {
    bwr.read_consumed = 0;
    if (copy_to_user(ubuf, &bwr, sizeof(bwr)))
     ret = -EFAULT;
    goto err;
   }
  }
  if (bwr.read_size > 0) {
   ret = binder_thread_read(proc, thread, (void __user *)bwr.read_buffer, bwr.read_size, &bwr.read_consumed, filp->f_flags & O_NONBLOCK);
   if (!list_empty(&proc->todo))
    wake_up_interruptible(&proc->wait);
   if (ret < 0) {
    if (copy_to_user(ubuf, &bwr, sizeof(bwr)))
     ret = -EFAULT;
    goto err;
   }
  }
  if (binder_debug_mask & BINDER_DEBUG_READ_WRITE)
   printk(KERN_INFO "binder: %d:%d wrote %ld of %ld, read return %ld of %ld\n",
   proc->pid, thread->pid, bwr.write_consumed, bwr.write_size, bwr.read_consumed, bwr.read_size);
  if (copy_to_user(ubuf, &bwr, sizeof(bwr))) {
   ret = -EFAULT;
   goto err;
  }
  break;
 }
 ......
 }
 ret = 0;
err:
 ......
 return ret;
}

函数首先是将用户传进来的参数拷贝到本地变量struct binder_write_read bwr中去。这里bwr.write_size > 0为true，因此，进入到binder_thread_write函数中，我们只关注BC_TRANSACTION部分的逻辑：


binder_thread_write(struct binder_proc *proc, struct binder_thread *thread,
     void __user *buffer, int size, signed long *consumed)
{
 uint32_t cmd;
 void __user *ptr = buffer + *consumed;
 void __user *end = buffer + size;

 while (ptr < end && thread->return_error == BR_OK) {
  if (get_user(cmd, (uint32_t __user *)ptr))
   return -EFAULT;
  ptr += sizeof(uint32_t);
  if (_IOC_NR(cmd) < ARRAY_SIZE(binder_stats.bc)) {
   binder_stats.bc[_IOC_NR(cmd)]++;
   proc->stats.bc[_IOC_NR(cmd)]++;
   thread->stats.bc[_IOC_NR(cmd)]++;
  }
  switch (cmd) {
   .....
  case BC_TRANSACTION:
  case BC_REPLY: {
   struct binder_transaction_data tr;

   if (copy_from_user(&tr, ptr, sizeof(tr)))
    return -EFAULT;
   ptr += sizeof(tr);
   binder_transaction(proc, thread, &tr, cmd == BC_REPLY);
   break;
  }
  ......
  }
  *consumed = ptr - buffer;
 }
 return 0;
}

首先将用户传进来的transact参数拷贝在本地变量struct binder_transaction_data tr中去，接着调用binder_transaction函数进一步处理，这里我们忽略掉无关代码：


static void
binder_transaction(struct binder_proc *proc, struct binder_thread *thread,
struct binder_transaction_data *tr, int reply)
{
 struct binder_transaction *t;
 struct binder_work *tcomplete;
 size_t *offp, *off_end;
 struct binder_proc *target_proc;
 struct binder_thread *target_thread = NULL;
 struct binder_node *target_node = NULL;
 struct list_head *target_list;
 wait_queue_head_t *target_wait;
 struct binder_transaction *in_reply_to = NULL;
 struct binder_transaction_log_entry *e;
 uint32_t return_error;

  ......

 if (reply) {
   ......
 } else {
  if (tr->target.handle) {
   ......
  } else {
   target_node = binder_context_mgr_node;
   if (target_node == NULL) {
    return_error = BR_DEAD_REPLY;
    goto err_no_context_mgr_node;
   }
  }
  ......
  target_proc = target_node->proc;
  if (target_proc == NULL) {
   return_error = BR_DEAD_REPLY;
   goto err_dead_binder;
  }
  ......
 }
 if (target_thread) {
  ......
 } else {
  target_list = &target_proc->todo;
  target_wait = &target_proc->wait;
 }

 ......

 /* TODO: reuse incoming transaction for reply */
 t = kzalloc(sizeof(*t), GFP_KERNEL);
 if (t == NULL) {
  return_error = BR_FAILED_REPLY;
  goto err_alloc_t_failed;
 }
 ......

 tcomplete = kzalloc(sizeof(*tcomplete), GFP_KERNEL);
 if (tcomplete == NULL) {
  return_error = BR_FAILED_REPLY;
  goto err_alloc_tcomplete_failed;
 }

 ......

 if (!reply && !(tr->flags & TF_ONE_WAY))
  t->from = thread;
 else
  t->from = NULL;
 t->sender_euid = proc->tsk->cred->euid;
 t->to_proc = target_proc;
 t->to_thread = target_thread;
 t->code = tr->code;
 t->flags = tr->flags;
 t->priority = task_nice(current);
 t->buffer = binder_alloc_buf(target_proc, tr->data_size,
  tr->offsets_size, !reply && (t->flags & TF_ONE_WAY));
 if (t->buffer == NULL) {
  return_error = BR_FAILED_REPLY;
  goto err_binder_alloc_buf_failed;
 }
 t->buffer->allow_user_free = 0;
 t->buffer->debug_id = t->debug_id;
 t->buffer->transaction = t;
 t->buffer->target_node = target_node;
 if (target_node)
  binder_inc_node(target_node, 1, 0, NULL);

 offp = (size_t *)(t->buffer->data + ALIGN(tr->data_size, sizeof(void *)));

 if (copy_from_user(t->buffer->data, tr->data.ptr.buffer, tr->data_size)) {
  ......
  return_error = BR_FAILED_REPLY;
  goto err_copy_data_failed;
 }
 if (copy_from_user(offp, tr->data.ptr.offsets, tr->offsets_size)) {
  ......
  return_error = BR_FAILED_REPLY;
  goto err_copy_data_failed;
 }
 ......

 off_end = (void *)offp + tr->offsets_size;
 for (; offp < off_end; offp++) {
  struct flat_binder_object *fp;
  ......
  fp = (struct flat_binder_object *)(t->buffer->data + *offp);
  switch (fp->type) {
  case BINDER_TYPE_BINDER:
  case BINDER_TYPE_WEAK_BINDER: {
   struct binder_ref *ref;
   struct binder_node *node = binder_get_node(proc, fp->binder);
   if (node == NULL) {
    node = binder_new_node(proc, fp->binder, fp->cookie);
    if (node == NULL) {
     return_error = BR_FAILED_REPLY;
     goto err_binder_new_node_failed;
    }
    node->min_priority = fp->flags & FLAT_BINDER_FLAG_PRIORITY_MASK;
    node->accept_fds = !!(fp->flags & FLAT_BINDER_FLAG_ACCEPTS_FDS);
   }
   if (fp->cookie != node->cookie) {
    ......
    goto err_binder_get_ref_for_node_failed;
   }
   ref = binder_get_ref_for_node(target_proc, node);
   if (ref == NULL) {
    return_error = BR_FAILED_REPLY;
    goto err_binder_get_ref_for_node_failed;
   }
   if (fp->type == BINDER_TYPE_BINDER)
    fp->type = BINDER_TYPE_HANDLE;
   else
    fp->type = BINDER_TYPE_WEAK_HANDLE;
   fp->handle = ref->desc;
   binder_inc_ref(ref, fp->type == BINDER_TYPE_HANDLE, &thread->todo);
   ......

  } break;
  ......
  }
 }

 if (reply) {
  ......
 } else if (!(t->flags & TF_ONE_WAY)) {
  BUG_ON(t->buffer->async_transaction != 0);
  t->need_reply = 1;
  t->from_parent = thread->transaction_stack;
  thread->transaction_stack = t;
 } else {
  ......
 }
 t->work.type = BINDER_WORK_TRANSACTION;
 list_add_tail(&t->work.entry, target_list);
 tcomplete->type = BINDER_WORK_TRANSACTION_COMPLETE;
 list_add_tail(&tcomplete->entry, &thread->todo);
 if (target_wait)
  wake_up_interruptible(target_wait);
 return;
 ......
}

注意，这里传进来的参数reply为0，tr->target.handle也为0。因此，target_proc、target_thread、target_node、target_list和target_wait的值分别为：


target_node = binder_context_mgr_node;
target_proc = target_node->proc;
target_list = &target_proc->todo;
target_wait = &target_proc->wait;

接着，分配了一个待处理事务t和一个待完成工作项tcomplete，并执行初始化工作：


/* TODO: reuse incoming transaction for reply */
t = kzalloc(sizeof(*t), GFP_KERNEL);
if (t == NULL) {
 return_error = BR_FAILED_REPLY;
 goto err_alloc_t_failed;
}
......

tcomplete = kzalloc(sizeof(*tcomplete), GFP_KERNEL);
if (tcomplete == NULL) {
 return_error = BR_FAILED_REPLY;
 goto err_alloc_tcomplete_failed;
}

......

if (!reply && !(tr->flags & TF_ONE_WAY))
 t->from = thread;
else
 t->from = NULL;
t->sender_euid = proc->tsk->cred->euid;
t->to_proc = target_proc;
t->to_thread = target_thread;
t->code = tr->code;
t->flags = tr->flags;
t->priority = task_nice(current);
t->buffer = binder_alloc_buf(target_proc, tr->data_size,
 tr->offsets_size, !reply && (t->flags & TF_ONE_WAY));
if (t->buffer == NULL) {
 return_error = BR_FAILED_REPLY;
 goto err_binder_alloc_buf_failed;
}
t->buffer->allow_user_free = 0;
t->buffer->debug_id = t->debug_id;
t->buffer->transaction = t;
t->buffer->target_node = target_node;
if (target_node)
 binder_inc_node(target_node, 1, 0, NULL);

offp = (size_t *)(t->buffer->data + ALIGN(tr->data_size, sizeof(void *)));

if (copy_from_user(t->buffer->data, tr->data.ptr.buffer, tr->data_size)) {
 ......
 return_error = BR_FAILED_REPLY;
 goto err_copy_data_failed;
}
if (copy_from_user(offp, tr->data.ptr.offsets, tr->offsets_size)) {
 ......
 return_error = BR_FAILED_REPLY;
 goto err_copy_data_failed;
}

注意，这里的事务t是要交给target_proc处理的，在这个场景之下，就是Service Manager了。因此，下面的语句：


t->buffer = binder_alloc_buf(target_proc, tr->data_size,
  tr->offsets_size, !reply && (t->flags & TF_ONE_WAY));

就是在Service Manager的进程空间中分配一块内存来保存用户传进入的参数了：


if (copy_from_user(t->buffer->data, tr->data.ptr.buffer, tr->data_size)) {
 ......
 return_error = BR_FAILED_REPLY;
 goto err_copy_data_failed;
}
if (copy_from_user(offp, tr->data.ptr.offsets, tr->offsets_size)) {
 ......
 return_error = BR_FAILED_REPLY;
 goto err_copy_data_failed;
}

由于现在target_node要被使用了，增加它的引用计数：


if (target_node)
  binder_inc_node(target_node, 1, 0, NULL);

接下去的for循环，就是用来处理传输数据中的Binder对象了。在我们的场景中，有一个类型为BINDER_TYPE_BINDER的Binder实体MediaPlayerService：


 switch (fp->type) {
 case BINDER_TYPE_BINDER:
 case BINDER_TYPE_WEAK_BINDER: {
struct binder_ref *ref;
struct binder_node *node = binder_get_node(proc, fp->binder);
if (node == NULL) {
 node = binder_new_node(proc, fp->binder, fp->cookie);
 if (node == NULL) {
  return_error = BR_FAILED_REPLY;
  goto err_binder_new_node_failed;
 }
 node->min_priority = fp->flags & FLAT_BINDER_FLAG_PRIORITY_MASK;
 node->accept_fds = !!(fp->flags & FLAT_BINDER_FLAG_ACCEPTS_FDS);
}
if (fp->cookie != node->cookie) {
 ......
 goto err_binder_get_ref_for_node_failed;
}
ref = binder_get_ref_for_node(target_proc, node);
if (ref == NULL) {
 return_error = BR_FAILED_REPLY;
 goto err_binder_get_ref_for_node_failed;
}
if (fp->type == BINDER_TYPE_BINDER)
 fp->type = BINDER_TYPE_HANDLE;
else
 fp->type = BINDER_TYPE_WEAK_HANDLE;
fp->handle = ref->desc;
binder_inc_ref(ref, fp->type == BINDER_TYPE_HANDLE, &thread->todo);
......

} break;

由于是第一次在Binder驱动程序中传输这个MediaPlayerService，调用binder_get_node函数查询这个Binder实体时，会返回空，于是binder_new_node在proc中新建一个，下次就可以直接使用了。

现在，由于要把这个Binder实体MediaPlayerService交给target_proc，也就是Service Manager来管理，也就是说Service Manager要引用这个MediaPlayerService了，于是通过binder_get_ref_for_node为MediaPlayerService创建一个引用，并且通过binder_inc_ref来增加这个引用计数，防止这个引用还在使用过程当中就被销毁。注意，到了这里的时候，t->buffer中的flat_binder_obj的type已经改为BINDER_TYPE_HANDLE，handle已经改为ref->desc，跟原来不一样了，因为这个flat_binder_obj是最终是要传给Service Manager的，而Service Manager只能够通过句柄值来引用这个Binder实体。

最后，把待处理事务加入到target_list列表中去：

list_add_tail(&t->work.entry, target_list);

并且把待完成工作项加入到本线程的todo等待执行列表中去：

list_add_tail(&tcomplete->entry, &thread->todo);

现在目标进程有事情可做了，于是唤醒它：

if (target_wait)
wake_up_interruptible(target_wait);

这里就是要唤醒Service Manager进程了。回忆一下前面这篇文章，此时， Service Manager正在binder_t浅谈Service Manager成为Android进程间通信（IPC）机制Binder守护进程之路hread_read函数中调用wait_event_interruptible进入休眠状态。

这里我们先忽略一下Service Manager被唤醒之后的场景，继续MedaPlayerService的启动过程，然后再回来。

回到binder_ioctl函数，bwr.read_size > 0为true，于是进入binder_thread_read函数：


static int
binder_thread_read(struct binder_proc *proc, struct binder_thread *thread,
     void __user *buffer, int size, signed long *consumed, int non_block)
{
 void __user *ptr = buffer + *consumed;
 void __user *end = buffer + size;

 int ret = 0;
 int wait_for_proc_work;

 if (*consumed == 0) {
  if (put_user(BR_NOOP, (uint32_t __user *)ptr))
   return -EFAULT;
  ptr += sizeof(uint32_t);
 }

retry:
 wait_for_proc_work = thread->transaction_stack == NULL && list_empty(&thread->todo);

 .......

 if (wait_for_proc_work) {
  .......
 } else {
  if (non_block) {
   if (!binder_has_thread_work(thread))
    ret = -EAGAIN;
  } else
   ret = wait_event_interruptible(thread->wait, binder_has_thread_work(thread));
 }

 ......

 while (1) {
  uint32_t cmd;
  struct binder_transaction_data tr;
  struct binder_work *w;
  struct binder_transaction *t = NULL;

  if (!list_empty(&thread->todo))
   w = list_first_entry(&thread->todo, struct binder_work, entry);
  else if (!list_empty(&proc->todo) && wait_for_proc_work)
   w = list_first_entry(&proc->todo, struct binder_work, entry);
  else {
   if (ptr - buffer == 4 && !(thread->looper & BINDER_LOOPER_STATE_NEED_RETURN)) /* no data added */
    goto retry;
   break;
  }

  if (end - ptr < sizeof(tr) + 4)
   break;

  switch (w->type) {
  ......
  case BINDER_WORK_TRANSACTION_COMPLETE: {
   cmd = BR_TRANSACTION_COMPLETE;
   if (put_user(cmd, (uint32_t __user *)ptr))
    return -EFAULT;
   ptr += sizeof(uint32_t);

   binder_stat_br(proc, thread, cmd);
   if (binder_debug_mask & BINDER_DEBUG_TRANSACTION_COMPLETE)
    printk(KERN_INFO "binder: %d:%d BR_TRANSACTION_COMPLETE\n",
    proc->pid, thread->pid);

   list_del(&w->entry);
   kfree(w);
   binder_stats.obj_deleted[BINDER_STAT_TRANSACTION_COMPLETE]++;
            } break;
  ......
  }

  if (!t)
   continue;

  ......
 }

done:
 ......
 return 0;
}

这里，thread->transaction_stack和thread->todo均不为空，于是wait_for_proc_work为false，由于binder_has_thread_work的时候，返回true，这里因为thread->todo不为空，因此，线程虽然调用了wait_event_interruptible，但是不会睡眠，于是继续往下执行。

由于thread->todo不为空，执行下列语句：


if (!list_empty(&thread->todo))
  w = list_first_entry(&thread->todo, struct binder_work, entry);

w->type为BINDER_WORK_TRANSACTION_COMPLETE，这是在上面的binder_transaction函数设置的，于是执行：


 switch (w->type) {
 ......
 case BINDER_WORK_TRANSACTION_COMPLETE: {
cmd = BR_TRANSACTION_COMPLETE;
if (put_user(cmd, (uint32_t __user *)ptr))
 return -EFAULT;
ptr += sizeof(uint32_t);

  ......
list_del(&w->entry);
kfree(w);

} break;
......
 }

这里就将w从thread->todo删除了。由于这里t为空，重新执行while循环，这时由于已经没有事情可做了，最后就返回到binder_ioctl函数中。注间，这里一共往用户传进来的缓冲区buffer写入了两个整数，分别是BR_NOOP和BR_TRANSACTION_COMPLETE。

binder_ioctl函数返回到用户空间之前，把数据消耗情况拷贝回用户空间中：


if (copy_to_user(ubuf, &bwr, sizeof(bwr))) {
 ret = -EFAULT;
 goto err;
}

最后返回到IPCThreadState::talkWithDriver函数中，执行下面语句：


 if (err >= NO_ERROR) {
  if (bwr.write_consumed > 0) {
   if (bwr.write_consumed < (ssize_t)mOut.dataSize())
    mOut.remove(0, bwr.write_consumed);
   else
    mOut.setDataSize(0);
  }
  if (bwr.read_consumed > 0) {
<pre code_snippet_id="134056" snippet_file_name="blog_20131230_54_6706870" name="code" class="cpp">   mIn.setDataSize(bwr.read_consumed);
   mIn.setDataPosition(0);</pre>  }  ......  return NO_ERROR; }

首先是把mOut的数据清空：
mOut.setDataSize(0);

然后设置已经读取的内容的大小：

mIn.setDataSize(bwr.read_consumed);
mIn.setDataPosition(0);

然后返回到IPCThreadState::waitForResponse函数中。在IPCThreadState::waitForResponse函数，先是从mIn读出一个整数，这个便是BR_NOOP了，这是一个空操作，什么也不做。然后继续进入IPCThreadState::talkWithDriver函数中。

这时候，下面语句执行后：

const bool needRead = mIn.dataPosition() >= mIn.dataSize();

needRead为false，因为在mIn中，尚有一个整数BR_TRANSACTION_COMPLETE未读出。

这时候，下面语句执行后：

const size_t outAvail = (!doReceive || needRead) ? mOut.dataSize() : 0;

outAvail等于0。因此，最后bwr.write_size和bwr.read_size均为0，IPCThreadState::talkWithDriver函数什么也不做，直接返回到IPCThreadState::waitForResponse函数中。在IPCThreadState::waitForResponse函数，又继续从mIn读出一个整数，这个便是BR_TRANSACTION_COMPLETE：


switch (cmd) {
case BR_TRANSACTION_COMPLETE:
  if (!reply && !acquireResult) goto finish;
  break;
......
}

reply不为NULL，因此，IPCThreadState::waitForResponse的循环没有结束，继续执行，又进入到IPCThreadState::talkWithDrive中。

这次，needRead就为true了，而outAvail仍为0，所以bwr.read_size不为0，bwr.write_size为0。于是通过：

ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr)

进入到Binder驱动程序中的binder_ioctl函数中。由于bwr.write_size为0，bwr.read_size不为0，这次直接就进入到binder_thread_read函数中。这时候，thread->transaction_stack不等于0，但是thread->todo为空，于是线程就通过：
[cpp] view plain copy 在CODE上查看代码片派生到我的代码片
wait_event_interruptible(thread->wait, binder_has_thread_work(thread));

进入睡眠状态，等待Service Manager来唤醒了。

现在，我们可以回到Service Manager被唤醒的过程了。我们接着前面浅谈Service Manager成为Android进程间通信（IPC）机制Binder守护进程之路这篇文章的最后，继续描述。此时， Service Manager正在binder_thread_read函数中调用wait_event_interruptible_exclusive进入休眠状态。上面被MediaPlayerService启动后进程唤醒后，继续执行binder_thread_read函数：


static int
binder_thread_read(struct binder_proc *proc, struct binder_thread *thread,
     void __user *buffer, int size, signed long *consumed, int non_block)
{
 void __user *ptr = buffer + *consumed;
 void __user *end = buffer + size;

 int ret = 0;
 int wait_for_proc_work;

 if (*consumed == 0) {
  if (put_user(BR_NOOP, (uint32_t __user *)ptr))
   return -EFAULT;
  ptr += sizeof(uint32_t);
 }

retry:
 wait_for_proc_work = thread->transaction_stack == NULL && list_empty(&thread->todo);

 ......

 if (wait_for_proc_work) {
  ......
  if (non_block) {
   if (!binder_has_proc_work(proc, thread))
    ret = -EAGAIN;
  } else
   ret = wait_event_interruptible_exclusive(proc->wait, binder_has_proc_work(proc, thread));
 } else {
  ......
 }

 ......

 while (1) {
  uint32_t cmd;
  struct binder_transaction_data tr;
  struct binder_work *w;
  struct binder_transaction *t = NULL;

  if (!list_empty(&thread->todo))
   w = list_first_entry(&thread->todo, struct binder_work, entry);
  else if (!list_empty(&proc->todo) && wait_for_proc_work)
   w = list_first_entry(&proc->todo, struct binder_work, entry);
  else {
   if (ptr - buffer == 4 && !(thread->looper & BINDER_LOOPER_STATE_NEED_RETURN)) /* no data added */
    goto retry;
   break;
  }

  if (end - ptr < sizeof(tr) + 4)
   break;

  switch (w->type) {
  case BINDER_WORK_TRANSACTION: {
   t = container_of(w, struct binder_transaction, work);
          } break;
  ......
  }

  if (!t)
   continue;

  BUG_ON(t->buffer == NULL);
  if (t->buffer->target_node) {
   struct binder_node *target_node = t->buffer->target_node;
   tr.target.ptr = target_node->ptr;
   tr.cookie = target_node->cookie;
   ......
   cmd = BR_TRANSACTION;
  } else {
   ......
  }
  tr.code = t->code;
  tr.flags = t->flags;
  tr.sender_euid = t->sender_euid;

  if (t->from) {
   struct task_struct *sender = t->from->proc->tsk;
   tr.sender_pid = task_tgid_nr_ns(sender, current->nsproxy->pid_ns);
  } else {
   tr.sender_pid = 0;
  }

  tr.data_size = t->buffer->data_size;
  tr.offsets_size = t->buffer->offsets_size;
  tr.data.ptr.buffer = (void *)t->buffer->data + proc->user_buffer_offset;
  tr.data.ptr.offsets = tr.data.ptr.buffer + ALIGN(t->buffer->data_size, sizeof(void *));

  if (put_user(cmd, (uint32_t __user *)ptr))
   return -EFAULT;
  ptr += sizeof(uint32_t);
  if (copy_to_user(ptr, &tr, sizeof(tr)))
   return -EFAULT;
  ptr += sizeof(tr);

  ......

  list_del(&t->work.entry);
  t->buffer->allow_user_free = 1;
  if (cmd == BR_TRANSACTION && !(t->flags & TF_ONE_WAY)) {
   t->to_parent = thread->transaction_stack;
   t->to_thread = thread;
   thread->transaction_stack = t;
  } else {
   t->buffer->transaction = NULL;
   kfree(t);
   binder_stats.obj_deleted[BINDER_STAT_TRANSACTION]++;
  }
  break;
 }

done:

 ......
 return 0;
}

Service Manager被唤醒之后，就进入while循环开始处理事务了。这里wait_for_proc_work等于1，并且proc->todo不为空，所以从proc->todo列表中得到第一个工作项：

w = list_first_entry(&proc->todo, struct binder_work, entry);

从上面的描述中，我们知道，这个工作项的类型为BINDER_WORK_TRANSACTION，于是通过下面语句得到事务项：

t = container_of(w, struct binder_transaction, work);

接着就是把事务项t中的数据拷贝到本地局部变量struct binder_transaction_data tr中去了：


if (t->buffer->target_node) {
 struct binder_node *target_node = t->buffer->target_node;
 tr.target.ptr = target_node->ptr;
 tr.cookie = target_node->cookie;
 ......
 cmd = BR_TRANSACTION;
} else {
 ......
}
tr.code = t->code;
tr.flags = t->flags;
tr.sender_euid = t->sender_euid;

if (t->from) {
 struct task_struct *sender = t->from->proc->tsk;
 tr.sender_pid = task_tgid_nr_ns(sender, current->nsproxy->pid_ns);
} else {
 tr.sender_pid = 0;
}

tr.data_size = t->buffer->data_size;
tr.offsets_size = t->buffer->offsets_size;
tr.data.ptr.buffer = (void *)t->buffer->data + proc->user_buffer_offset;
tr.data.ptr.offsets = tr.data.ptr.buffer + ALIGN(t->buffer->data_size, sizeof(void *));

这里有一个非常重要的地方，是Binder进程间通信机制的精髓所在：


tr.data.ptr.buffer = (void *)t->buffer->data + proc->user_buffer_offset;
tr.data.ptr.offsets = tr.data.ptr.buffer + ALIGN(t->buffer->data_size, sizeof(void *));

t->buffer->data所指向的地址是内核空间的，现在要把数据返回给Service Manager进程的用户空间，而Service Manager进程的用户空间是不能访问内核空间的数据的，所以这里要作一下处理。怎么处理呢？我们在学面向对象语言的时候，对象的拷贝有深拷贝和浅拷贝之分，深拷贝是把另外分配一块新内存，然后把原始对象的内容搬过去，浅拷贝是并没有为新对象分配一块新空间，而只是分配一个引用，而个引用指向原始对象。Binder机制用的是类似浅拷贝的方法，通过在用户空间分配一个虚拟地址，然后让这个用户空间虚拟地址与 t->buffer->data这个内核空间虚拟地址指向同一个物理地址，这样就可以实现浅拷贝了。怎么样用户空间和内核空间的虚拟地址同时指向同一个物理地址呢？请参考前面一篇文章浅谈Service Manager成为Android进程间通信（IPC）机制Binder守护进程之路，那里有详细描述。这里只要将t->buffer->data加上一个偏移值proc->user_buffer_offset就可以得到t->buffer->data对应的用户空间虚拟地址了。调整了tr.data.ptr.buffer的值之后，不要忘记也要一起调整tr.data.ptr.offsets的值。

接着就是把tr的内容拷贝到用户传进来的缓冲区去了，指针ptr指向这个用户缓冲区的地址：


if (put_user(cmd, (uint32_t __user *)ptr))
 return -EFAULT;
ptr += sizeof(uint32_t);
if (copy_to_user(ptr, &tr, sizeof(tr)))
 return -EFAULT;
ptr += sizeof(tr);

这里可以看出，这里只是对作tr.data.ptr.bufferr和tr.data.ptr.offsets的内容作了浅拷贝。

最后，由于已经处理了这个事务，要把它从todo列表中删除：


list_del(&t->work.entry);
t->buffer->allow_user_free = 1;
if (cmd == BR_TRANSACTION && !(t->flags & TF_ONE_WAY)) {
 t->to_parent = thread->transaction_stack;
 t->to_thread = thread;
 thread->transaction_stack = t;
} else {
 t->buffer->transaction = NULL;
 kfree(t);
 binder_stats.obj_deleted[BINDER_STAT_TRANSACTION]++;
}

注意，这里的cmd == BR_TRANSACTION && !(t->flags & TF_ONE_WAY)为true，表明这个事务虽然在驱动程序中已经处理完了，但是它仍然要等待Service Manager完成之后，给驱动程序一个确认，也就是需要等待回复，于是把当前事务t放在thread->transaction_stack队列的头部：


t->to_parent = thread->transaction_stack;
t->to_thread = thread;
thread->transaction_stack = t;

如果cmd == BR_TRANSACTION && !(t->flags & TF_ONE_WAY)为false，那就不需要等待回复了，直接把事务t删掉。

这个while最后通过一个break跳了出来，最后返回到binder_ioctl函数中：


static long binder_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{
 int ret;
 struct binder_proc *proc = filp->private_data;
 struct binder_thread *thread;
 unsigned int size = _IOC_SIZE(cmd);
 void __user *ubuf = (void __user *)arg;

 ......

 switch (cmd) {
 case BINDER_WRITE_READ: {
  struct binder_write_read bwr;
  if (size != sizeof(struct binder_write_read)) {
   ret = -EINVAL;
   goto err;
  }
  if (copy_from_user(&bwr, ubuf, sizeof(bwr))) {
   ret = -EFAULT;
   goto err;
  }
  ......
  if (bwr.read_size > 0) {
   ret = binder_thread_read(proc, thread, (void __user *)bwr.read_buffer, bwr.read_size, &bwr.read_consumed, filp->f_flags & O_NONBLOCK);
   if (!list_empty(&proc->todo))
    wake_up_interruptible(&proc->wait);
   if (ret < 0) {
    if (copy_to_user(ubuf, &bwr, sizeof(bwr)))
     ret = -EFAULT;
    goto err;
   }
  }
  ......
  if (copy_to_user(ubuf, &bwr, sizeof(bwr))) {
   ret = -EFAULT;
   goto err;
  }
  break;
  }
 ......
 default:
  ret = -EINVAL;
  goto err;
 }
 ret = 0;
err:
 ......
 return ret;
}

从binder_thread_read返回来后，再看看proc->todo是否还有事务等待处理，如果是，就把睡眠在proc->wait队列的线程唤醒来处理。最后，把本地变量struct binder_write_read bwr的内容拷贝回到用户传进来的缓冲区中，就返回了。

这里就是返回到frameworks/base/cmds/servicemanager/binder.c文件中的binder_loop函数了：


void binder_loop(struct binder_state *bs, binder_handler func)
{
 int res;
 struct binder_write_read bwr;
 unsigned readbuf[32];

 bwr.write_size = 0;
 bwr.write_consumed = 0;
 bwr.write_buffer = 0;

 readbuf[0] = BC_ENTER_LOOPER;
 binder_write(bs, readbuf, sizeof(unsigned));

 for (;;) {
  bwr.read_size = sizeof(readbuf);
  bwr.read_consumed = 0;
  bwr.read_buffer = (unsigned) readbuf;

  res = ioctl(bs->fd, BINDER_WRITE_READ, &bwr);

  if (res < 0) {
   LOGE("binder_loop: ioctl failed (%s)\n", strerror(errno));
   break;
  }

  res = binder_parse(bs, 0, readbuf, bwr.read_consumed, func);
  if (res == 0) {
   LOGE("binder_loop: unexpected reply?!\n");
   break;
  }
  if (res < 0) {
   LOGE("binder_loop: io error %d %s\n", res, strerror(errno));
   break;
  }
 }
}

返回来的数据都放在readbuf中，接着调用binder_parse进行解析：


int binder_parse(struct binder_state *bs, struct binder_io *bio,
     uint32_t *ptr, uint32_t size, binder_handler func)
{
 int r = 1;
 uint32_t *end = ptr + (size / 4);

 while (ptr < end) {
  uint32_t cmd = *ptr++;
  ......
  case BR_TRANSACTION: {
   struct binder_txn *txn = (void *) ptr;
   if ((end - ptr) * sizeof(uint32_t) < sizeof(struct binder_txn)) {
    LOGE("parse: txn too small!\n");
    return -1;
   }
   binder_dump_txn(txn);
   if (func) {
    unsigned rdata[256/4];
    struct binder_io msg;
    struct binder_io reply;
    int res;

    bio_init(&reply, rdata, sizeof(rdata), 4);
    bio_init_from_txn(&msg, txn);
    res = func(bs, txn, &msg, &reply);
    binder_send_reply(bs, &reply, txn->data, res);
   }
   ptr += sizeof(*txn) / sizeof(uint32_t);
   break;
        }
  ......
  default:
   LOGE("parse: OOPS %d\n", cmd);
   return -1;
  }
 }

 return r;
}

首先把从Binder驱动程序读出来的数据转换为一个struct binder_txn结构体，保存在txn本地变量中，struct binder_txn定义在frameworks/base/cmds/servicemanager/binder.h文件中：


struct binder_txn
{
 void *target;
 void *cookie;
 uint32_t code;
 uint32_t flags;

 uint32_t sender_pid;
 uint32_t sender_euid;

 uint32_t data_size;
 uint32_t offs_size;
 void *data;
 void *offs;
};

函数中还用到了另外一个数据结构struct binder_io，也是定义在frameworks/base/cmds/servicemanager/binder.h文件中：


struct binder_io
{
 char *data;   /* pointer to read/write from */
 uint32_t *offs;  /* array of offsets */
 uint32_t data_avail; /* bytes available in data buffer */
 uint32_t offs_avail; /* entries available in offsets array */

 char *data0;   /* start of data buffer */
 uint32_t *offs0;  /* start of offsets buffer */
 uint32_t flags;
 uint32_t unused;
};

接着往下看，函数调bio_init来初始化reply变量：


void bio_init(struct binder_io *bio, void *data,
    uint32_t maxdata, uint32_t maxoffs)
{
 uint32_t n = maxoffs * sizeof(uint32_t);

 if (n > maxdata) {
  bio->flags = BIO_F_OVERFLOW;
  bio->data_avail = 0;
  bio->offs_avail = 0;
  return;
 }

 bio->data = bio->data0 = data + n;
 bio->offs = bio->offs0 = data;
 bio->data_avail = maxdata - n;
 bio->offs_avail = maxoffs;
 bio->flags = 0;
}

接着又调用bio_init_from_txn来初始化msg变量：


void bio_init_from_txn(struct binder_io *bio, struct binder_txn *txn)
{
 bio->data = bio->data0 = txn->data;
 bio->offs = bio->offs0 = txn->offs;
 bio->data_avail = txn->data_size;
 bio->offs_avail = txn->offs_size / 4;
 bio->flags = BIO_F_SHARED;
}

最后，真正进行处理的函数是从参数中传进来的函数指针func，这里就是定义在frameworks/base/cmds/servicemanager/service_manager.c文件中的svcmgr_handler函数：


int svcmgr_handler(struct binder_state *bs,
     struct binder_txn *txn,
     struct binder_io *msg,
     struct binder_io *reply)
{
 struct svcinfo *si;
 uint16_t *s;
 unsigned len;
 void *ptr;
 uint32_t strict_policy;

 if (txn->target != svcmgr_handle)
  return -1;

 // Equivalent to Parcel::enforceInterface(), reading the RPC
 // header with the strict mode policy mask and the interface name.
 // Note that we ignore the strict_policy and don't propagate it
 // further (since we do no outbound RPCs anyway).
 strict_policy = bio_get_uint32(msg);
 s = bio_get_string16(msg, &len);
 if ((len != (sizeof(svcmgr_id) / 2)) ||
  memcmp(svcmgr_id, s, sizeof(svcmgr_id))) {
   fprintf(stderr,"invalid id %s\n", str8(s));
   return -1;
 }

 switch(txn->code) {
 ......
 case SVC_MGR_ADD_SERVICE:
  s = bio_get_string16(msg, &len);
  ptr = bio_get_ref(msg);
  if (do_add_service(bs, s, len, ptr, txn->sender_euid))
   return -1;
  break;
 ......
 }

 bio_put_uint32(reply, 0);
 return 0;
}

回忆一下，在BpServiceManager::addService时，传给Binder驱动程序的参数为：


writeInt32(IPCThreadState::self()->getStrictModePolicy() | STRICT_MODE_PENALTY_GATHER);
writeString16("android.os.IServiceManager");
writeString16("media.player");
writeStrongBinder(new MediaPlayerService());

这里的语句：


strict_policy = bio_get_uint32(msg);
s = bio_get_string16(msg, &len);
s = bio_get_string16(msg, &len);
ptr = bio_get_ref(msg);

就是依次把它们读取出来了，这里，我们只要看一下bio_get_ref的实现。先看一个数据结构struct binder_obj的定义：


struct binder_object
{
 uint32_t type;
 uint32_t flags;
 void *pointer;
 void *cookie;
};

这个结构体其实就是对应struct flat_binder_obj的。
接着看bio_get_ref实现：


void *bio_get_ref(struct binder_io *bio)
{
 struct binder_object *obj;

 obj = _bio_get_obj(bio);
 if (!obj)
  return 0;

 if (obj->type == BINDER_TYPE_HANDLE)
  return obj->pointer;

 return 0;
}

_bio_get_obj这个函数就不跟进去看了，它的作用就是从binder_io中取得第一个还没取获取过的binder_object。在这个场景下，就是我们最开始传过来代表MediaPlayerService的flat_binder_obj了，这个原始的flat_binder_obj的type为BINDER_TYPE_BINDER，binder为指向MediaPlayerService的弱引用的地址。在前面我们说过，在Binder驱动驱动程序里面，会把这个flat_binder_obj的type改为BINDER_TYPE_HANDLE，handle改为一个句柄值。这里的handle值就等于obj->pointer的值。

回到svcmgr_handler函数，调用do_add_service进一步处理：


int do_add_service(struct binder_state *bs,
     uint16_t *s, unsigned len,
     void *ptr, unsigned uid)
{
 struct svcinfo *si;
// LOGI("add_service('%s',%p) uid=%d\n", str8(s), ptr, uid);

 if (!ptr || (len == 0) || (len > 127))
  return -1;

 if (!svc_can_register(uid, s)) {
  LOGE("add_service('%s',%p) uid=%d - PERMISSION DENIED\n",
    str8(s), ptr, uid);
  return -1;
 }

 si = find_svc(s, len);
 if (si) {
  if (si->ptr) {
   LOGE("add_service('%s',%p) uid=%d - ALREADY REGISTERED\n",
     str8(s), ptr, uid);
   return -1;
  }
  si->ptr = ptr;
 } else {
  si = malloc(sizeof(*si) + (len + 1) * sizeof(uint16_t));
  if (!si) {
   LOGE("add_service('%s',%p) uid=%d - OUT OF MEMORY\n",
     str8(s), ptr, uid);
   return -1;
  }
  si->ptr = ptr;
  si->len = len;
  memcpy(si->name, s, (len + 1) * sizeof(uint16_t));
  si->name[len] = '\0';
  si->death.func = svcinfo_death;
  si->death.ptr = si;
  si->next = svclist;
  svclist = si;
 }

 binder_acquire(bs, ptr);
 binder_link_to_death(bs, ptr, &si->death);
 return 0;
}

这个函数的实现很简单，就是把MediaPlayerService这个Binder实体的引用写到一个struct svcinfo结构体中，主要是它的名称和句柄值，然后插入到链接svclist的头部去。这样，Client来向Service Manager查询服务接口时，只要给定服务名称，Service Manger就可以返回相应的句柄值了。

这个函数执行完成后，返回到svcmgr_handler函数，函数的最后，将一个错误码0写到reply变量中去，表示一切正常：

bio_put_uint32(reply, 0);

svcmgr_handler函数执行完成后，返回到binder_parse函数，执行下面语句：

binder_send_reply(bs, &reply, txn->data, res);

我们看一下binder_send_reply的实现，从函数名就可以猜到它要做什么了，告诉Binder驱动程序，它完成了Binder驱动程序交给它的任务了。


void binder_send_reply(struct binder_state *bs,
      struct binder_io *reply,
      void *buffer_to_free,
      int status)
{
 struct {
  uint32_t cmd_free;
  void *buffer;
  uint32_t cmd_reply;
  struct binder_txn txn;
 } __attribute__((packed)) data;

 data.cmd_free = BC_FREE_BUFFER;
 data.buffer = buffer_to_free;
 data.cmd_reply = BC_REPLY;
 data.txn.target = 0;
 data.txn.cookie = 0;
 data.txn.code = 0;
 if (status) {
  data.txn.flags = TF_STATUS_CODE;
  data.txn.data_size = sizeof(int);
  data.txn.offs_size = 0;
  data.txn.data = &status;
  data.txn.offs = 0;
 } else {
  data.txn.flags = 0;
  data.txn.data_size = reply->data - reply->data0;
  data.txn.offs_size = ((char*) reply->offs) - ((char*) reply->offs0);
  data.txn.data = reply->data0;
  data.txn.offs = reply->offs0;
 }
 binder_write(bs, &data, sizeof(data));
}

从这里可以看出，binder_send_reply告诉Binder驱动程序执行BC_FREE_BUFFER和BC_REPLY命令，前者释放之前在binder_transaction分配的空间，地址为buffer_to_free，buffer_to_free这个地址是Binder驱动程序把自己在内核空间用的地址转换成用户空间地址再传给Service Manager的，所以Binder驱动程序拿到这个地址后，知道怎么样释放这个空间；后者告诉MediaPlayerService，它的addService操作已经完成了，错误码是0，保存在data.txn.data中。

再来看binder_write函数：


int binder_write(struct binder_state *bs, void *data, unsigned len)
{
 struct binder_write_read bwr;
 int res;
 bwr.write_size = len;
 bwr.write_consumed = 0;
 bwr.write_buffer = (unsigned) data;
 bwr.read_size = 0;
 bwr.read_consumed = 0;
 bwr.read_buffer = 0;
 res = ioctl(bs->fd, BINDER_WRITE_READ, &bwr);
 if (res < 0) {
  fprintf(stderr,"binder_write: ioctl failed (%s)\n",
    strerror(errno));
 }
 return res;
}

这里可以看出，只有写操作，没有读操作，即read_size为0。

这里又是一个ioctl的BINDER_WRITE_READ操作。直入到驱动程序的binder_ioctl函数后，执行BINDER_WRITE_READ命令，这里就不累述了。

最后，从binder_ioctl执行到binder_thread_write函数，我们首先看第一个命令BC_FREE_BUFFER：


int
binder_thread_write(struct binder_proc *proc, struct binder_thread *thread,
     void __user *buffer, int size, signed long *consumed)
{
 uint32_t cmd;
 void __user *ptr = buffer + *consumed;
 void __user *end = buffer + size;

 while (ptr < end && thread->return_error == BR_OK) {
  if (get_user(cmd, (uint32_t __user *)ptr))
   return -EFAULT;
  ptr += sizeof(uint32_t);
  if (_IOC_NR(cmd) < ARRAY_SIZE(binder_stats.bc)) {
   binder_stats.bc[_IOC_NR(cmd)]++;
   proc->stats.bc[_IOC_NR(cmd)]++;
   thread->stats.bc[_IOC_NR(cmd)]++;
  }
  switch (cmd) {
  ......
  case BC_FREE_BUFFER: {
   void __user *data_ptr;
   struct binder_buffer *buffer;

   if (get_user(data_ptr, (void * __user *)ptr))
    return -EFAULT;
   ptr += sizeof(void *);

   buffer = binder_buffer_lookup(proc, data_ptr);
   if (buffer == NULL) {
    binder_user_error("binder: %d:%d "
     "BC_FREE_BUFFER u%p no match\n",
     proc->pid, thread->pid, data_ptr);
    break;
   }
   if (!buffer->allow_user_free) {
    binder_user_error("binder: %d:%d "
     "BC_FREE_BUFFER u%p matched "
     "unreturned buffer\n",
     proc->pid, thread->pid, data_ptr);
    break;
   }
   if (binder_debug_mask & BINDER_DEBUG_FREE_BUFFER)
    printk(KERN_INFO "binder: %d:%d BC_FREE_BUFFER u%p found buffer %d for %s transaction\n",
    proc->pid, thread->pid, data_ptr, buffer->debug_id,
    buffer->transaction ? "active" : "finished");

   if (buffer->transaction) {
    buffer->transaction->buffer = NULL;
    buffer->transaction = NULL;
   }
   if (buffer->async_transaction && buffer->target_node) {
    BUG_ON(!buffer->target_node->has_async_transaction);
    if (list_empty(&buffer->target_node->async_todo))
     buffer->target_node->has_async_transaction = 0;
    else
     list_move_tail(buffer->target_node->async_todo.next, &thread->todo);
   }
   binder_transaction_buffer_release(proc, buffer, NULL);
   binder_free_buf(proc, buffer);
   break;
        }

  ......
  *consumed = ptr - buffer;
 }
 return 0;
}

首先通过看这个语句：


get_user(data_ptr, (void * __user *)ptr)

这个是获得要删除的Buffer的用户空间地址，接着通过下面这个语句来找到这个地址对应的struct binder_buffer信息：

buffer = binder_buffer_lookup(proc, data_ptr);

因为这个空间是前面在binder_transaction里面分配的，所以这里一定能找到。

最后，就可以释放这块内存了：

binder_transaction_buffer_release(proc, buffer, NULL);
binder_free_buf(proc, buffer);

再来看另外一个命令BC_REPLY：


int
binder_thread_write(struct binder_proc *proc, struct binder_thread *thread,
     void __user *buffer, int size, signed long *consumed)
{
 uint32_t cmd;
 void __user *ptr = buffer + *consumed;
 void __user *end = buffer + size;

 while (ptr < end && thread->return_error == BR_OK) {
  if (get_user(cmd, (uint32_t __user *)ptr))
   return -EFAULT;
  ptr += sizeof(uint32_t);
  if (_IOC_NR(cmd) < ARRAY_SIZE(binder_stats.bc)) {
   binder_stats.bc[_IOC_NR(cmd)]++;
   proc->stats.bc[_IOC_NR(cmd)]++;
   thread->stats.bc[_IOC_NR(cmd)]++;
  }
  switch (cmd) {
  ......
  case BC_TRANSACTION:
  case BC_REPLY: {
   struct binder_transaction_data tr;

   if (copy_from_user(&tr, ptr, sizeof(tr)))
    return -EFAULT;
   ptr += sizeof(tr);
   binder_transaction(proc, thread, &tr, cmd == BC_REPLY);
   break;
      }

  ......
  *consumed = ptr - buffer;
 }
 return 0;
}

又再次进入到binder_transaction函数：


static void
binder_transaction(struct binder_proc *proc, struct binder_thread *thread,
struct binder_transaction_data *tr, int reply)
{
 struct binder_transaction *t;
 struct binder_work *tcomplete;
 size_t *offp, *off_end;
 struct binder_proc *target_proc;
 struct binder_thread *target_thread = NULL;
 struct binder_node *target_node = NULL;
 struct list_head *target_list;
 wait_queue_head_t *target_wait;
 struct binder_transaction *in_reply_to = NULL;
 struct binder_transaction_log_entry *e;
 uint32_t return_error;

 ......

 if (reply) {
  in_reply_to = thread->transaction_stack;
  if (in_reply_to == NULL) {
   ......
   return_error = BR_FAILED_REPLY;
   goto err_empty_call_stack;
  }
  binder_set_nice(in_reply_to->saved_priority);
  if (in_reply_to->to_thread != thread) {
   .......
   goto err_bad_call_stack;
  }
  thread->transaction_stack = in_reply_to->to_parent;
  target_thread = in_reply_to->from;
  if (target_thread == NULL) {
   return_error = BR_DEAD_REPLY;
   goto err_dead_binder;
  }
  if (target_thread->transaction_stack != in_reply_to) {
   ......
   return_error = BR_FAILED_REPLY;
   in_reply_to = NULL;
   target_thread = NULL;
   goto err_dead_binder;
  }
  target_proc = target_thread->proc;
 } else {
  ......
 }
 if (target_thread) {
  e->to_thread = target_thread->pid;
  target_list = &target_thread->todo;
  target_wait = &target_thread->wait;
 } else {
  ......
 }


 /* TODO: reuse incoming transaction for reply */
 t = kzalloc(sizeof(*t), GFP_KERNEL);
 if (t == NULL) {
  return_error = BR_FAILED_REPLY;
  goto err_alloc_t_failed;
 }


 tcomplete = kzalloc(sizeof(*tcomplete), GFP_KERNEL);
 if (tcomplete == NULL) {
  return_error = BR_FAILED_REPLY;
  goto err_alloc_tcomplete_failed;
 }

 if (!reply && !(tr->flags & TF_ONE_WAY))
  t->from = thread;
 else
  t->from = NULL;
 t->sender_euid = proc->tsk->cred->euid;
 t->to_proc = target_proc;
 t->to_thread = target_thread;
 t->code = tr->code;
 t->flags = tr->flags;
 t->priority = task_nice(current);
 t->buffer = binder_alloc_buf(target_proc, tr->data_size,
  tr->offsets_size, !reply && (t->flags & TF_ONE_WAY));
 if (t->buffer == NULL) {
  return_error = BR_FAILED_REPLY;
  goto err_binder_alloc_buf_failed;
 }
 t->buffer->allow_user_free = 0;
 t->buffer->debug_id = t->debug_id;
 t->buffer->transaction = t;
 t->buffer->target_node = target_node;
 if (target_node)
  binder_inc_node(target_node, 1, 0, NULL);

 offp = (size_t *)(t->buffer->data + ALIGN(tr->data_size, sizeof(void *)));

 if (copy_from_user(t->buffer->data, tr->data.ptr.buffer, tr->data_size)) {
  binder_user_error("binder: %d:%d got transaction with invalid "
   "data ptr\n", proc->pid, thread->pid);
  return_error = BR_FAILED_REPLY;
  goto err_copy_data_failed;
 }
 if (copy_from_user(offp, tr->data.ptr.offsets, tr->offsets_size)) {
  binder_user_error("binder: %d:%d got transaction with invalid "
   "offsets ptr\n", proc->pid, thread->pid);
  return_error = BR_FAILED_REPLY;
  goto err_copy_data_failed;
 }

 ......

 if (reply) {
  BUG_ON(t->buffer->async_transaction != 0);
  binder_pop_transaction(target_thread, in_reply_to);
 } else if (!(t->flags & TF_ONE_WAY)) {
  ......
 } else {
  ......
 }
 t->work.type = BINDER_WORK_TRANSACTION;
 list_add_tail(&t->work.entry, target_list);
 tcomplete->type = BINDER_WORK_TRANSACTION_COMPLETE;
 list_add_tail(&tcomplete->entry, &thread->todo);
 if (target_wait)
  wake_up_interruptible(target_wait);
 return;
 ......
}

注意，这里的reply为1，我们忽略掉其它无关代码。

前面Service Manager正在binder_thread_read函数中被MediaPlayerService启动后进程唤醒后，在最后会把当前处理完的事务放在thread->transaction_stack中：


if (cmd == BR_TRANSACTION && !(t->flags & TF_ONE_WAY)) {
 t->to_parent = thread->transaction_stack;
 t->to_thread = thread;
 thread->transaction_stack = t;
}

所以，这里，首先是把它这个binder_transaction取回来，并且放在本地变量in_reply_to中：

in_reply_to = thread->transaction_stack;

接着就可以通过in_reply_to得到最终发出这个事务请求的线程和进程：

target_thread = in_reply_to->from;
target_proc = target_thread->proc;

然后得到target_list和target_wait：

target_list = &target_thread->todo;
target_wait = &target_thread->wait;

下面这一段代码：


/* TODO: reuse incoming transaction for reply */
t = kzalloc(sizeof(*t), GFP_KERNEL);
if (t == NULL) {
 return_error = BR_FAILED_REPLY;
 goto err_alloc_t_failed;
}


tcomplete = kzalloc(sizeof(*tcomplete), GFP_KERNEL);
if (tcomplete == NULL) {
 return_error = BR_FAILED_REPLY;
 goto err_alloc_tcomplete_failed;
}

if (!reply && !(tr->flags & TF_ONE_WAY))
 t->from = thread;
else
 t->from = NULL;
t->sender_euid = proc->tsk->cred->euid;
t->to_proc = target_proc;
t->to_thread = target_thread;
t->code = tr->code;
t->flags = tr->flags;
t->priority = task_nice(current);
t->buffer = binder_alloc_buf(target_proc, tr->data_size,
 tr->offsets_size, !reply && (t->flags & TF_ONE_WAY));
if (t->buffer == NULL) {
 return_error = BR_FAILED_REPLY;
 goto err_binder_alloc_buf_failed;
}
t->buffer->allow_user_free = 0;
t->buffer->debug_id = t->debug_id;
t->buffer->transaction = t;
t->buffer->target_node = target_node;
if (target_node)
 binder_inc_node(target_node, 1, 0, NULL);

offp = (size_t *)(t->buffer->data + ALIGN(tr->data_size, sizeof(void *)));

if (copy_from_user(t->buffer->data, tr->data.ptr.buffer, tr->data_size)) {
 binder_user_error("binder: %d:%d got transaction with invalid "
  "data ptr\n", proc->pid, thread->pid);
 return_error = BR_FAILED_REPLY;
 goto err_copy_data_failed;
}
if (copy_from_user(offp, tr->data.ptr.offsets, tr->offsets_size)) {
 binder_user_error("binder: %d:%d got transaction with invalid "
  "offsets ptr\n", proc->pid, thread->pid);
 return_error = BR_FAILED_REPLY;
 goto err_copy_data_failed;
}

我们在前面已经分析过了，这里不再重复。但是有一点要注意的是，这里target_node为NULL，因此，t->buffer->target_node也为NULL。

函数本来有一个for循环，用来处理数据中的Binder对象，这里由于没有Binder对象，所以就略过了。到了下面这句代码：

binder_pop_transaction(target_thread, in_reply_to);

我们看看做了什么事情：


static void
binder_pop_transaction(
 struct binder_thread *target_thread, struct binder_transaction *t)
{
 if (target_thread) {
  BUG_ON(target_thread->transaction_stack != t);
  BUG_ON(target_thread->transaction_stack->from != target_thread);
  target_thread->transaction_stack =
   target_thread->transaction_stack->from_parent;
  t->from = NULL;
 }
 t->need_reply = 0;
 if (t->buffer)
  t->buffer->transaction = NULL;
 kfree(t);
 binder_stats.obj_deleted[BINDER_STAT_TRANSACTION]++;
}

由于到了这里，已经不需要in_reply_to这个transaction了，就把它删掉。

回到binder_transaction函数：


t->work.type = BINDER_WORK_TRANSACTION;
list_add_tail(&t->work.entry, target_list);
tcomplete->type = BINDER_WORK_TRANSACTION_COMPLETE;
list_add_tail(&tcomplete->entry, &thread->todo);

和前面一样，分别把t和tcomplete分别放在target_list和thread->todo队列中，这里的target_list指的就是最初调用IServiceManager::addService的MediaPlayerService的Server主线程的的thread->todo队列了，而thread->todo指的是Service Manager中用来回复IServiceManager::addService请求的线程。

最后，唤醒等待在target_wait队列上的线程了，就是最初调用IServiceManager::addService的MediaPlayerService的Server主线程了，它最后在binder_thread_read函数中睡眠在thread->wait上，就是这里的target_wait了：

if (target_wait)
wake_up_interruptible(target_wait);

这样，Service Manger回复调用IServiceManager::addService请求就算完成了，重新回到frameworks/base/cmds/servicemanager/binder.c文件中的binder_loop函数等待下一个Client请求的到来。事实上，Service Manger回到binder_loop函数再次执行ioctl函数时候，又会再次进入到binder_thread_read函数。这时个会发现thread->todo不为空，这是因为刚才我们调用了：

list_add_tail(&tcomplete->entry, &thread->todo);

把一个工作项tcompelete放在了在thread->todo中，这个tcompelete的type为BINDER_WORK_TRANSACTION_COMPLETE，因此，Binder驱动程序会执行下面操作：


switch (w->type) {
case BINDER_WORK_TRANSACTION_COMPLETE: {
 cmd = BR_TRANSACTION_COMPLETE;
 if (put_user(cmd, (uint32_t __user *)ptr))
  return -EFAULT;
 ptr += sizeof(uint32_t);

 list_del(&w->entry);
 kfree(w);

 } break;
 ......
}

binder_loop函数执行完这个ioctl调用后，才会在下一次调用ioctl进入到Binder驱动程序进入休眠状态，等待下一次Client的请求。

上面讲到调用IServiceManager::addService的MediaPlayerService的Server主线程被唤醒了，于是，重新执行binder_thread_read函数：


static int
binder_thread_read(struct binder_proc *proc, struct binder_thread *thread,
     void __user *buffer, int size, signed long *consumed, int non_block)
{
 void __user *ptr = buffer + *consumed;
 void __user *end = buffer + size;

 int ret = 0;
 int wait_for_proc_work;

 if (*consumed == 0) {
  if (put_user(BR_NOOP, (uint32_t __user *)ptr))
   return -EFAULT;
  ptr += sizeof(uint32_t);
 }

retry:
 wait_for_proc_work = thread->transaction_stack == NULL && list_empty(&thread->todo);

 ......

 if (wait_for_proc_work) {
  ......
 } else {
  if (non_block) {
   if (!binder_has_thread_work(thread))
    ret = -EAGAIN;
  } else
   ret = wait_event_interruptible(thread->wait, binder_has_thread_work(thread));
 }

 ......

 while (1) {
  uint32_t cmd;
  struct binder_transaction_data tr;
  struct binder_work *w;
  struct binder_transaction *t = NULL;

  if (!list_empty(&thread->todo))
   w = list_first_entry(&thread->todo, struct binder_work, entry);
  else if (!list_empty(&proc->todo) && wait_for_proc_work)
   w = list_first_entry(&proc->todo, struct binder_work, entry);
  else {
   if (ptr - buffer == 4 && !(thread->looper & BINDER_LOOPER_STATE_NEED_RETURN)) /* no data added */
    goto retry;
   break;
  }

  ......

  switch (w->type) {
  case BINDER_WORK_TRANSACTION: {
   t = container_of(w, struct binder_transaction, work);
          } break;
  ......
  }

  if (!t)
   continue;

  BUG_ON(t->buffer == NULL);
  if (t->buffer->target_node) {
   ......
  } else {
   tr.target.ptr = NULL;
   tr.cookie = NULL;
   cmd = BR_REPLY;
  }
  tr.code = t->code;
  tr.flags = t->flags;
  tr.sender_euid = t->sender_euid;

  if (t->from) {
   ......
  } else {
   tr.sender_pid = 0;
  }

  tr.data_size = t->buffer->data_size;
  tr.offsets_size = t->buffer->offsets_size;
  tr.data.ptr.buffer = (void *)t->buffer->data + proc->user_buffer_offset;
  tr.data.ptr.offsets = tr.data.ptr.buffer + ALIGN(t->buffer->data_size, sizeof(void *));

  if (put_user(cmd, (uint32_t __user *)ptr))
   return -EFAULT;
  ptr += sizeof(uint32_t);
  if (copy_to_user(ptr, &tr, sizeof(tr)))
   return -EFAULT;
  ptr += sizeof(tr);

  ......

  list_del(&t->work.entry);
  t->buffer->allow_user_free = 1;
  if (cmd == BR_TRANSACTION && !(t->flags & TF_ONE_WAY)) {
   ......
  } else {
   t->buffer->transaction = NULL;
   kfree(t);
   binder_stats.obj_deleted[BINDER_STAT_TRANSACTION]++;
  }
  break;
 }

done:
 ......
 return 0;
}

在while循环中，从thread->todo得到w，w->type为BINDER_WORK_TRANSACTION，于是，得到t。从上面可以知道，Service Manager反回了一个0回来，写在t->buffer->data里面，现在把t->buffer->data加上proc->user_buffer_offset，得到用户空间地址，保存在tr.data.ptr.buffer里面，这样用户空间就可以访问这个返回码了。由于cmd不等于BR_TRANSACTION，这时就可以把t删除掉了，因为以后都不需要用了。

执行完这个函数后，就返回到binder_ioctl函数，执行下面语句，把数据返回给用户空间：


if (copy_to_user(ubuf, &bwr, sizeof(bwr))) {
 ret = -EFAULT;
 goto err;
}

接着返回到用户空间IPCThreadState::talkWithDriver函数，最后返回到IPCThreadState::waitForResponse函数，最终执行到下面语句：


status_t IPCThreadState::waitForResponse(Parcel *reply, status_t *acquireResult)
{
 int32_t cmd;
 int32_t err;

 while (1) {
  if ((err=talkWithDriver()) < NO_ERROR) break;

  ......

  cmd = mIn.readInt32();

  ......

  switch (cmd) {
  ......
  case BR_REPLY:
   {
    binder_transaction_data tr;
    err = mIn.read(&tr, sizeof(tr));
    LOG_ASSERT(err == NO_ERROR, "Not enough command data for brREPLY");
    if (err != NO_ERROR) goto finish;

    if (reply) {
     if ((tr.flags & TF_STATUS_CODE) == 0) {
      reply->ipcSetDataReference(
       reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
       tr.data_size,
       reinterpret_cast<const size_t*>(tr.data.ptr.offsets),
       tr.offsets_size/sizeof(size_t),
       freeBuffer, this);
     } else {
      ......
     }
    } else {
     ......
    }
   }
   goto finish;

  ......
  }
 }

finish:
 ......
 return err;
}

注意，这里的tr.flags等于0，这个是在上面的binder_send_reply函数里设置的。最终把结果保存在reply了：


reply->ipcSetDataReference(
  reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
  tr.data_size,
  reinterpret_cast<const size_t*>(tr.data.ptr.offsets),
  tr.offsets_size/sizeof(size_t),
  freeBuffer, this);

这个函数我们就不看了，有兴趣的读者可以研究一下。

从这里层层返回，最后回到MediaPlayerService::instantiate函数中。

至此，IServiceManager::addService终于执行完毕了。这个过程非常复杂，但是如果我们能够深刻地理解这一过程，将能很好地理解Binder机制的设计思想和实现过程。这里，对IServiceManager::addService过程中MediaPlayerService、ServiceManager和BinderDriver之间的交互作一个小结：

回到frameworks/base/media/mediaserver/main_mediaserver.cpp文件中的main函数，接下去还要执行下面两个函数：

ProcessState::self()->startThreadPool();
IPCThreadState::self()->joinThreadPool();

首先看ProcessState::startThreadPool函数的实现：


void ProcessState::startThreadPool()
{
 AutoMutex _l(mLock);
 if (!mThreadPoolStarted) {
  mThreadPoolStarted = true;
  spawnPooledThread(true);
 }
}

这里调用spwanPooledThread：


void ProcessState::spawnPooledThread(bool isMain)
{
 if (mThreadPoolStarted) {
  int32_t s = android_atomic_add(1, &mThreadPoolSeq);
  char buf[32];
  sprintf(buf, "Binder Thread #%d", s);
  LOGV("Spawning new pooled thread, name=%s\n", buf);
  sp<Thread> t = new PoolThread(isMain);
  t->run(buf);
 }
}

这里主要是创建一个线程，PoolThread继续Thread类，Thread类定义在frameworks/base/libs/utils/Threads.cpp文件中，其run函数最终调用子类的threadLoop函数，这里即为PoolThread::threadLoop函数：


virtual bool threadLoop()
{
 IPCThreadState::self()->joinThreadPool(mIsMain);
 return false;
}

这里和frameworks/base/media/mediaserver/main_mediaserver.cpp文件中的main函数一样，最终都是调用了IPCThreadState::joinThreadPool函数，它们的区别是，一个参数是true，一个是默认值false。我们来看一下这个函数的实现：


void IPCThreadState::joinThreadPool(bool isMain)
{
 LOG_THREADPOOL("**** THREAD %p (PID %d) IS JOINING THE THREAD POOL\n", (void*)pthread_self(), getpid());

 mOut.writeInt32(isMain ? BC_ENTER_LOOPER : BC_REGISTER_LOOPER);

 ......

 status_t result;
 do {
  int32_t cmd;

  .......

  // now get the next command to be processed, waiting if necessary
  result = talkWithDriver();
  if (result >= NO_ERROR) {
   size_t IN = mIn.dataAvail();
   if (IN < sizeof(int32_t)) continue;
   cmd = mIn.readInt32();
   ......
   }

   result = executeCommand(cmd);
  }

  ......
 } while (result != -ECONNREFUSED && result != -EBADF);

 .......

 mOut.writeInt32(BC_EXIT_LOOPER);
 talkWithDriver(false);
}

这个函数最终是在一个无穷循环中，通过调用talkWithDriver函数来和Binder驱动程序进行交互，实际上就是调用talkWithDriver来等待Client的请求，然后再调用executeCommand来处理请求，而在executeCommand函数中，最终会调用BBinder::transact来真正处理Client的请求：


status_t IPCThreadState::executeCommand(int32_t cmd)
{
 BBinder* obj;
 RefBase::weakref_type* refs;
 status_t result = NO_ERROR;

 switch (cmd) {
 ......

 case BR_TRANSACTION:
  {
   binder_transaction_data tr;
   result = mIn.read(&tr, sizeof(tr));

   ......

   Parcel reply;

   ......

   if (tr.target.ptr) {
    sp<BBinder> b((BBinder*)tr.cookie);
    const status_t error = b->transact(tr.code, buffer, &reply, tr.flags);
    if (error < NO_ERROR) reply.setError(error);

   } else {
    const status_t error = the_context_object->transact(tr.code, buffer, &reply, tr.flags);
    if (error < NO_ERROR) reply.setError(error);
   }

   ......
  }
  break;

 .......
 }

 if (result != NO_ERROR) {
  mLastError = result;
 }

 return result;
}

接下来再看一下BBinder::transact的实现：


status_t BBinder::transact(
 uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
 data.setDataPosition(0);

 status_t err = NO_ERROR;
 switch (code) {
  case PING_TRANSACTION:
   reply->writeInt32(pingBinder());
   break;
  default:
   err = onTransact(code, data, reply, flags);
   break;
 }

 if (reply != NULL) {
  reply->setDataPosition(0);
 }

 return err;
}

最终会调用onTransact函数来处理。在这个场景中，BnMediaPlayerService继承了BBinder类，并且重载了onTransact函数，因此，这里实际上是调用了BnMediaPlayerService::onTransact函数，这个函数定义在frameworks/base/libs/media/libmedia/IMediaPlayerService.cpp文件中：


status_t BnMediaPlayerService::onTransact(
 uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
 switch(code) {
  case CREATE_URL: {
   ......
       } break;
  case CREATE_FD: {
   ......
      } break;
  case DECODE_URL: {
   ......
       } break;
  case DECODE_FD: {
   ......
      } break;
  case CREATE_MEDIA_RECORDER: {
   ......
         } break;
  case CREATE_METADATA_RETRIEVER: {
   ......
          } break;
  case GET_OMX: {
   ......
      } break;
  default:
   return BBinder::onTransact(code, data, reply, flags);
 }
}

至此，我们就以MediaPlayerService为例，完整地介绍了Android系统进程间通信Binder机制中的Server启动过程。Server启动起来之后，就会在一个无穷循环中等待Client的请求了。在下一篇文章中，我们将介绍Client如何通过Service Manager远程接口来获得Server远程接口，进而调用Server远程接口来使用Server提供的服务，敬请关注。

Android系统进程间通信（IPC）机制Binder中的Server启动过程源代码分析

Android移动端操作系统

后端技术

前端技术

数据库

热门框架

常用IDE

其他
