Android中使用socket通信实现消息推送的方法详解

public class SocketMessage {

  public int to;//socketID，指发送给谁
  public int from;//socketID，指谁发送过来的
  public String msg;//消息内容
  public String time;//接收时间
  public SocketThread thread;//socketThread下面有介绍
}

package com.jimstin.server;

import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.InputStreamReader;
import java.io.OutputStreamWriter;
import java.net.ServerSocket;
import java.net.Socket;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.Date;

import org.json.JSONObject;


import com.jimstin.msg.SocketMessage;

public class MyServer {

  private boolean isStartServer;
  private ServerSocket mServer;
  /**
   * 消息队列，用于保存SocketServer接收来自于客户机（手机端）的消息
   */
  private ArrayList<SocketMessage> mMsgList = new ArrayList<SocketMessage>();
  /**
   * 线程队列，用于接收消息。每个客户机拥有一个线程，每个线程只接收发送给自己的消息
   */
  private ArrayList<SocketThread> mThreadList = new ArrayList<SocketThread>();

  /**
   * 开启SocketServer
   */
  private void startSocket() {
    try {
      isStartServer = true;
      int prot = 2000;//端口可以自己设置，但要和Client端的端口保持一致
      mServer = new ServerSocket(prot);//创建一个ServerSocket
      System.out.println("启动server,端口："+prot);
      Socket socket = null;
      int socketID = 0;//Android（SocketClient）客户机的唯一标志，每个socketID表示一个Android客户机
      //开启发送消息线程
      startSendMessageThread();
      //用一个循环来检测是否有新的客户机加入
      while(isStartServer) {
        //accept()方法是一个阻塞的方法，调用该方法后，
        //该线程会一直阻塞，直到有新的客户机加入，代码才会继续往下走
        socket = mServer.accept();
        //有新的客户机加入后，则创建一个新的SocketThread线程对象
        SocketThread thread = new SocketThread(socket, socketID++);
        thread.start();
        //将该线程添加到线程队列
        mThreadList.add(thread);
      }

    } catch (Exception e) {
      e.printStackTrace();
    }
  }

  /**
   * 开启推送消息线程，如果mMsgList中有SocketMessage，则把该消息推送到Android客户机
   */
  public void startSendMessageThread() {
    new Thread(){
      @Override
      public void run() {
        super.run();
        try {
          /*如果isStartServer=true，则说明SocketServer已启动，
          用一个循环来检测消息队列中是否有消息，如果有，则推送消息到相应的客户机*/
          while(isStartServer) {
            //判断消息队列中的长度是否大于0，大于0则说明消息队列不为空
            if(mMsgList.size() > 0) {
              //读取消息队列中的第一个消息
              SocketMessage from = mMsgList.get(0);
              for(SocketThread to : mThreadList) {
                if(to.socketID == from.to) {
                  BufferedWriter writer = to.writer;
                  JSONObject json = new JSONObject();
                  json.put("from", from.from);
                  json.put("msg", from.msg);
                  json.put("time", from.time);
                  //writer写进json中的字符串数据，末尾记得加换行符："\n"，否则在客户机端无法识别
                  //因为BufferedReader.readLine()方法是根据换行符来读取一行的
                  writer.write(json.toString()+"\n");
                  //调用flush()方法，刷新流缓冲，把消息推送到手机端
                  writer.flush();
                  System.out.println("推送消息成功："+from.msg+">> to socketID:"+from.to);
                  break;
                }
              }
              //每推送一条消息之后，就要在消息队列中移除该消息
              mMsgList.remove(0);
            }
            Thread.sleep(200);
          }
        } catch (Exception e) {
          e.printStackTrace();
        }
      }
    }.start();
  }

  /**
   * 定义一个SocketThread类，用于接收消息
   *
   */
  public class SocketThread extends Thread {

    public int socketID;
    public Socket socket;//Socket用于获取输入流、输出流
    public BufferedWriter writer;//BufferedWriter 用于推送消息
    public BufferedReader reader;//BufferedReader 用于接收消息

    public SocketThread(Socket socket, int count) {
      socketID = count;
      this.socket = socket;
      System.out.println("新增一台客户机，socketID："+socketID);
    }

    @Override
    public void run() {
      super.run();

      try {
        //初始化BufferedReader
        reader = new BufferedReader(new InputStreamReader(socket.getInputStream(), "utf-8"));
        //初始化BufferedWriter
        writer = new BufferedWriter(new OutputStreamWriter(socket.getOutputStream(), "utf-8"));
        //如果isStartServer=true，则说明SocketServer已经启动，
        //现在需要用一个循环来不断接收来自客户机的消息，并作其他处理
        while(isStartServer) {
          //先判断reader是否已经准备好
          if(reader.ready()) {
            /*读取一行字符串，读取的内容来自于客户机
            reader.readLine()方法是一个阻塞方法，
            从调用这个方法开始，该线程会一直处于阻塞状态，
            直到接收到新的消息，代码才会往下走*/
            String data = reader.readLine();
            //讲data作为json对象的内容，创建一个json对象
            JSONObject json = new JSONObject(data);
            //创建一个SocketMessage对象，用于接收json中的数据
            SocketMessage msg = new SocketMessage();
            msg.to = json.getInt("to");
            msg.msg = json.getString("msg");
            msg.from = socketID;
            msg.time = getTime(System.currentTimeMillis());
            //接收到一条消息后，将该消息添加到消息队列mMsgList
            mMsgList.add(msg);
            System.out.println("收到一条消息："+json.getString("msg")+" >>>> to socketID:"+json.getInt("to"));
          }
          //睡眠100ms，每100ms检测一次是否有接收到消息
          Thread.sleep(100);
        }

      } catch (Exception e) {
        e.printStackTrace();
      }

    }
  }
  /**
   * 获取指定格式的时间字符串，通过毫秒转换日期
   * @param millTime
   */
  private String getTime(long millTime) {
    Date d = new Date(millTime);
    SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
    return sdf.format(d);
  }
  public static void main(String[] args) {
    MyServer server = new MyServer();
    server.startSocket();
  }

}

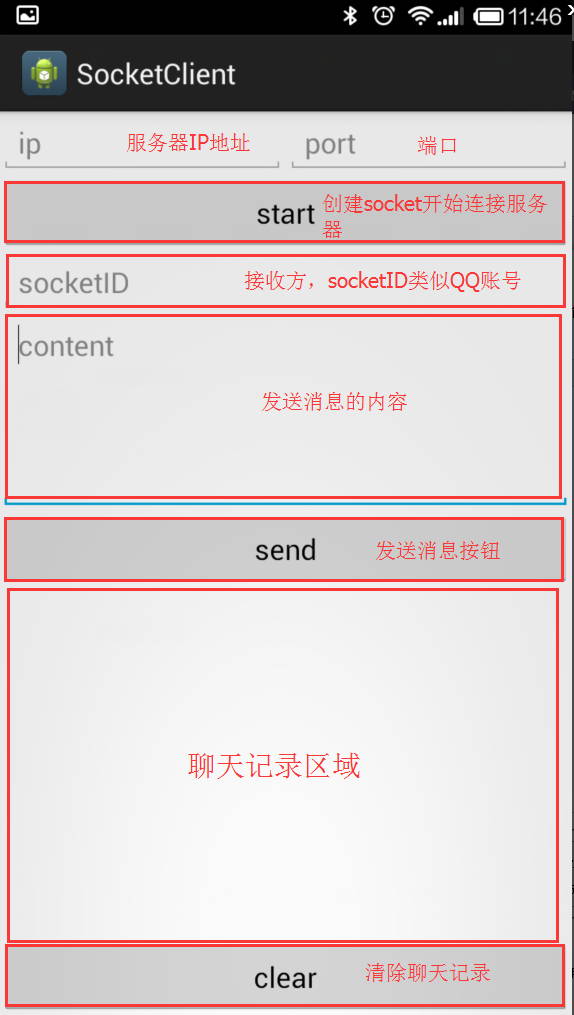

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  tools:context=".MainActivity"
  android:orientation="vertical" >

  <LinearLayout
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="horizontal">
    <EditText
      android:id="@+id/ip_edt"
      android:layout_width="0dp"
      android:layout_height="wrap_content"
      android:layout_weight="1"
      android:hint="ip"
      android:text="172.16.1.200"/>
    <EditText
      android:id="@+id/port_edt"
      android:layout_width="0dp"
      android:layout_height="wrap_content"
      android:layout_weight="1"
      android:hint="port"
      android:text="2000"/>
  </LinearLayout>
  <Button
    android:id="@+id/start_btn"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:text="start"/>
  <EditText
    android:id="@+id/socket_id_edt"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:hint="socketID"/>



  <EditText
    android:id="@+id/msg_edt"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:minLines="5"
    android:hint="content"
    android:gravity="top"
    />
  <Button
    android:id="@+id/send_btn"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:text="send"/>
  <TextView
    android:id="@+id/console_txt"
    android:layout_width="match_parent"
    android:layout_height="0dp"
    android:layout_weight="1"/>
  <Button
    android:id="@+id/clear_btn"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:text="clear"/>
</LinearLayout>

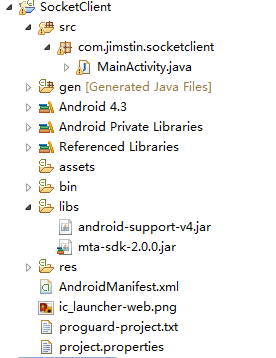

package com.jimstin.socketclient;

import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.OutputStreamWriter;
import java.net.Socket;
import java.net.UnknownHostException;
import java.text.SimpleDateFormat;
import java.util.Date;

import org.json.JSONObject;

import com.tencent.stat.MtaSDkException;
import com.tencent.stat.StatConfig;
import com.tencent.stat.StatService;

import android.R.integer;
import android.os.AsyncTask;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.util.Log;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;
import android.app.Activity;

public class MainActivity extends Activity implements OnClickListener {

  private EditText mIPEdt, mPortEdt, mSocketIDEdt, mMessageEdt;
  private static TextView mConsoleTxt;

  private static StringBuffer mConsoleStr = new StringBuffer();
  private Socket mSocket;
  private boolean isStartRecieveMsg;

  private SocketHandler mHandler;
  protected BufferedReader mReader;//BufferedWriter 用于推送消息
  protected BufferedWriter mWriter;//BufferedReader 用于接收消息

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);
    initView();
  }

  private void initView() {
    mIPEdt = (EditText) findViewById(R.id.ip_edt);
    mPortEdt = (EditText) findViewById(R.id.port_edt);
    mSocketIDEdt = (EditText) findViewById(R.id.socket_id_edt);
    mMessageEdt = (EditText) findViewById(R.id.msg_edt);
    mConsoleTxt = (TextView) findViewById(R.id.console_txt);
    findViewById(R.id.start_btn).setOnClickListener(this);
    findViewById(R.id.send_btn).setOnClickListener(this);
    findViewById(R.id.clear_btn).setOnClickListener(this);
    mHandler = new SocketHandler();
  }

  /**
   * 初始化socket
   */
  private void initSocket() {
    //新建一个线程，用于初始化socket和检测是否有接收到新的消息
    Thread thread = new Thread(new Runnable() {

      @Override
      public void run() {
        String ip = mIPEdt.getText().toString();//IP
        int port = Integer.parseInt(mPortEdt.getText().toString());//Socket

        try {
          isStartRecieveMsg = true;
          mSocket = new Socket(ip, port);
          mReader = new BufferedReader(new InputStreamReader(mSocket.getInputStream(), "utf-8"));
          mWriter = new BufferedWriter(new OutputStreamWriter(mSocket.getOutputStream(), "utf-8"));
          while(isStartRecieveMsg) {
            if(mReader.ready()) {
              /*读取一行字符串，读取的内容来自于客户机
              reader.readLine()方法是一个阻塞方法，
              从调用这个方法开始，该线程会一直处于阻塞状态，
              直到接收到新的消息，代码才会往下走*/
              String data = mReader.readLine();
              //handler发送消息，在handleMessage()方法中接收
              mHandler.obtainMessage(0, data).sendToTarget();
            }
            Thread.sleep(200);
          }
          mWriter.close();
          mReader.close();
          mSocket.close();
        } catch (Exception e) {
          e.printStackTrace();
        }
      }
    });
    thread.start();
  }

  @Override
  public void onClick(View v) {
    switch (v.getId()) {
    case R.id.send_btn:
      send();
      break;
    case R.id.clear_btn:
      mConsoleStr.delete(0, mConsoleStr.length());
      mConsoleTxt.setText(mConsoleStr.toString());
      break;
    case R.id.start_btn:
      if(!isStartRecieveMsg) {
        initSocket();
      }
      break;
    default:
      break;
    }
  }

  /**
   * 发送
   */
  private void send() {
    new AsyncTask<String, Integer, String>() {

      @Override
      protected String doInBackground(String... params) {
        sendMsg();
        return null;
      }
    }.execute();
  }
  /**
   * 发送消息
   */
  protected void sendMsg() {
    try {
      String socketID = mSocketIDEdt.getText().toString().trim();
      String msg = mMessageEdt.getText().toString().trim();
      JSONObject json = new JSONObject();
      json.put("to", socketID);
      json.put("msg", msg);
      mWriter.write(json.toString()+"\n");
      mWriter.flush();
      mConsoleStr.append("我:" +msg+"  "+getTime(System.currentTimeMillis())+"\n");
      mConsoleTxt.setText(mConsoleStr);
    } catch (Exception e) {
      e.printStackTrace();
    }
  }

  static class SocketHandler extends Handler {

    @Override
    public void handleMessage(Message msg) {
      // TODO Auto-generated method stub
      super.handleMessage(msg);
      switch (msg.what) {
      case 0:
        try {
          //将handler中发送过来的消息创建json对象
          JSONObject json = new JSONObject((String)msg.obj);
          mConsoleStr.append(json.getString("from")+":" +json.getString("msg")+"  "+getTime(System.currentTimeMillis())+"\n");
          //将json数据显示在TextView中
          mConsoleTxt.setText(mConsoleStr);
        } catch (Exception e) {
          e.printStackTrace();
        }

        break;

      default:
        break;
      }
    }
  }

  @Override
  public void onBackPressed() {
    super.onBackPressed();
    isStartRecieveMsg = false;
  }

  private static String getTime(long millTime) {
    Date d = new Date(millTime);
    SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
    return sdf.format(d);
  }

}
